MONDATA BARITONE DELUXE LH

MONDATA BARITONE DELUXE LH

$1,399.00 USD
$1,399.00 USD
Sale Sold out

In stock

Color
Play-Ready

Guaranteed

Free* Shipping

Contiguous USA

Easy Returns

45-Day Window

Free Warranty

1-Year Coverage

Add a Case?

  • Mondata Baritone LH (Left-Hand)
    Rivolta Custom Hard Case — Mondata Baritone LH (Left-Hand) +$299.00 View Details
  • Rivolta Premium Soft Case
    Rivolta Premium Soft Case +$179.00 View Details
New Total:

Revolution, Redefined.

Updated in 2024, the Rivolta Mondata Baritone has been re-designed from the ground up by world renowned luthier & designer Dennis Fano (Novo Guitars).

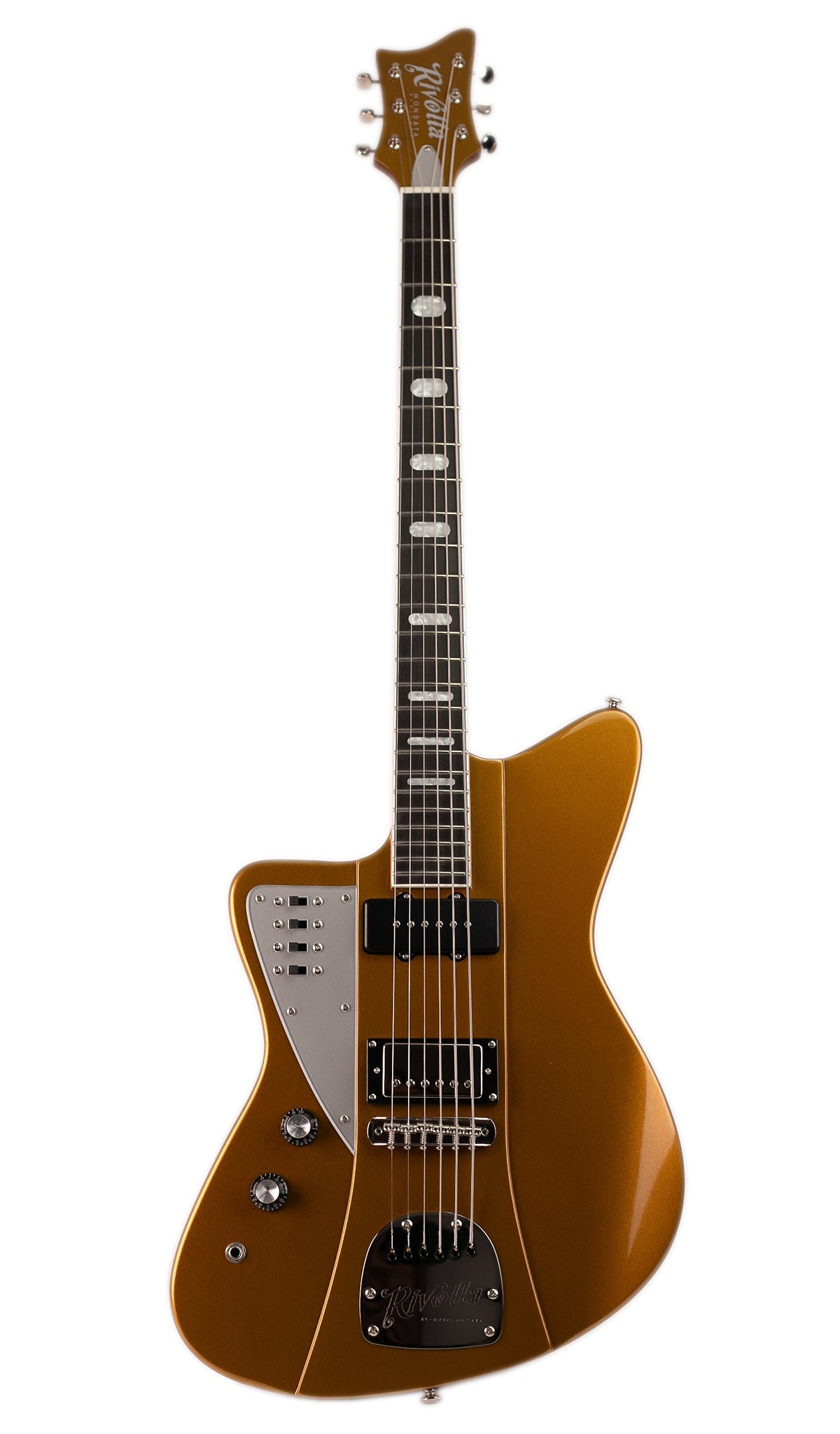

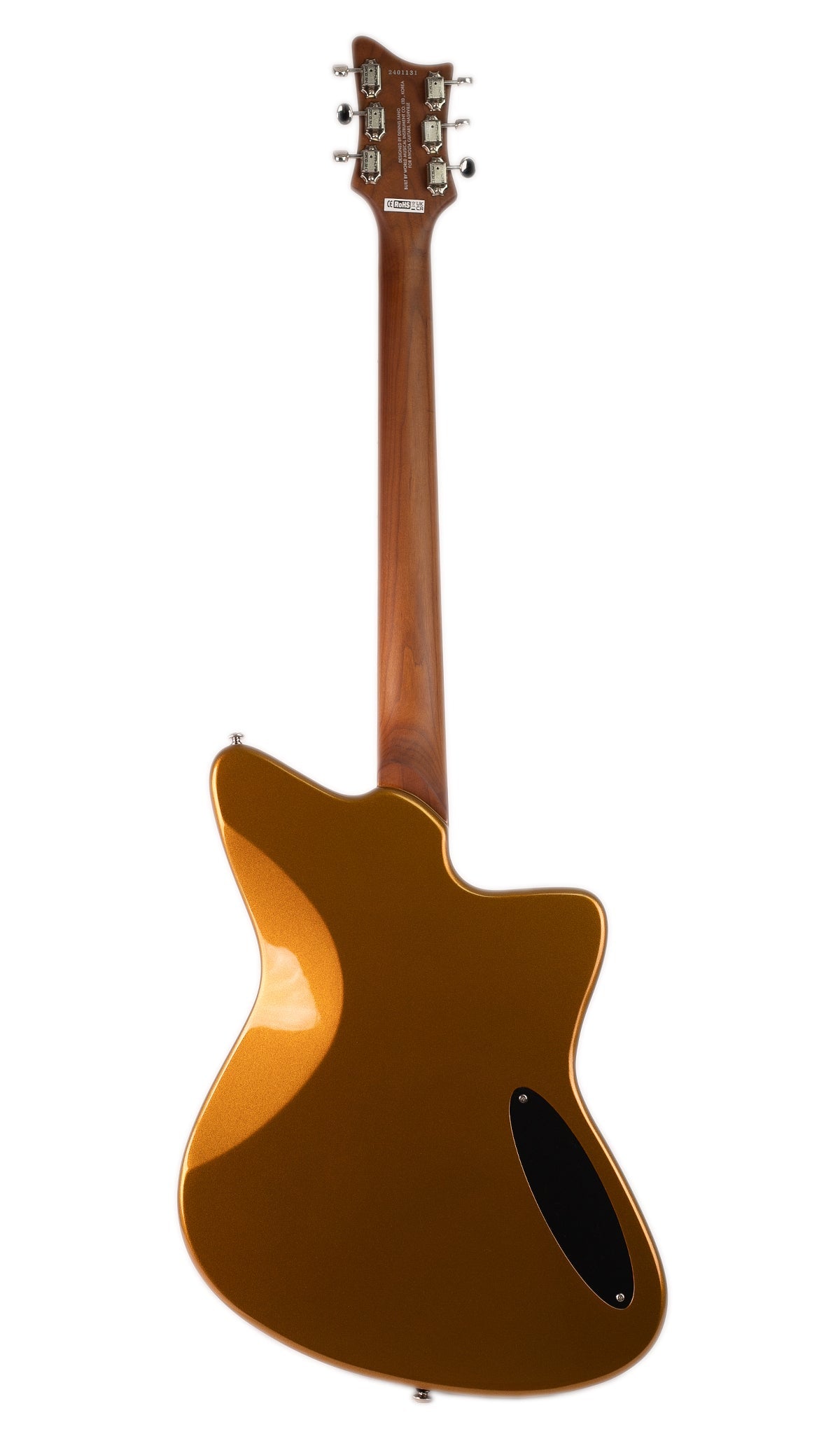

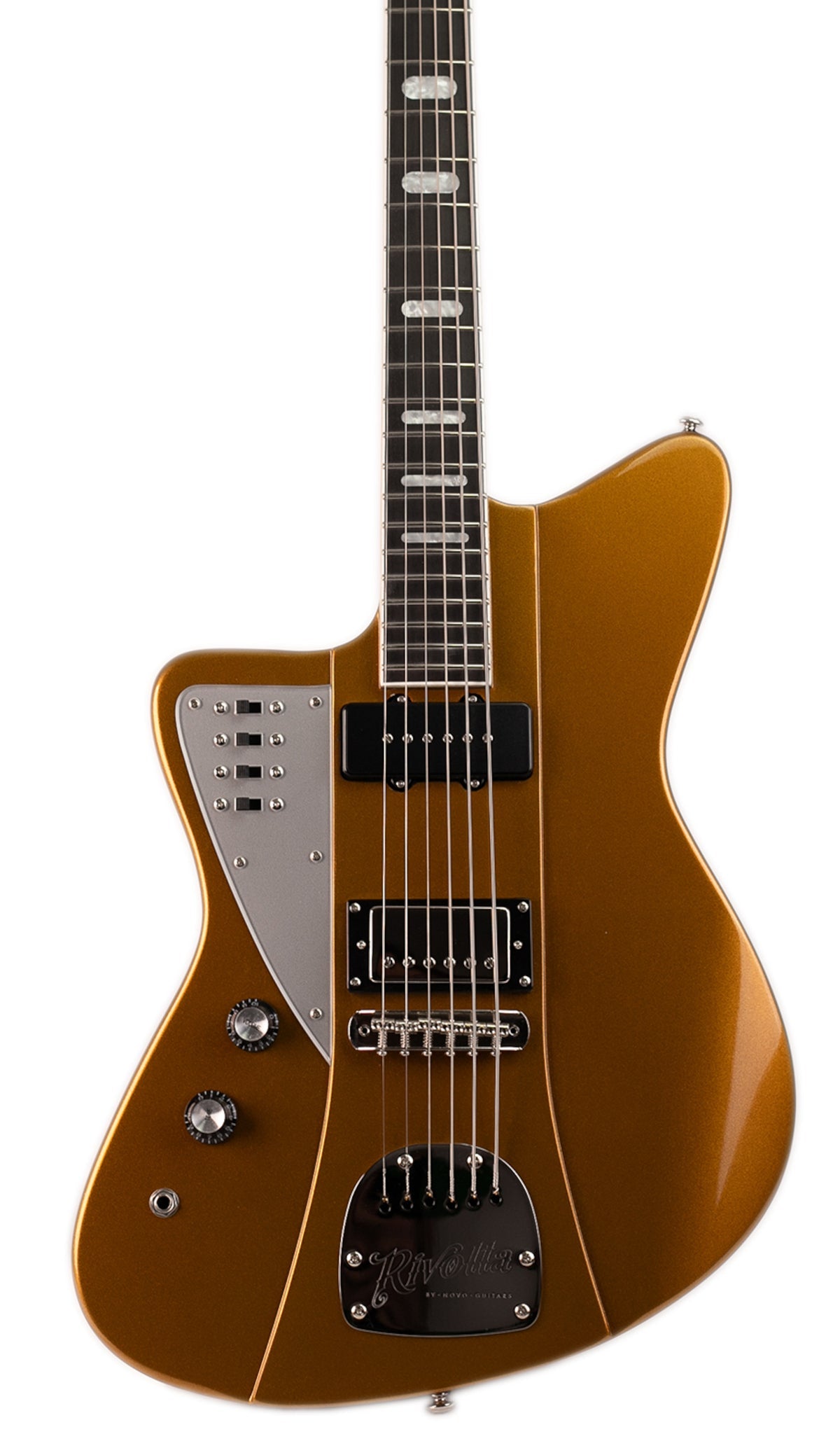

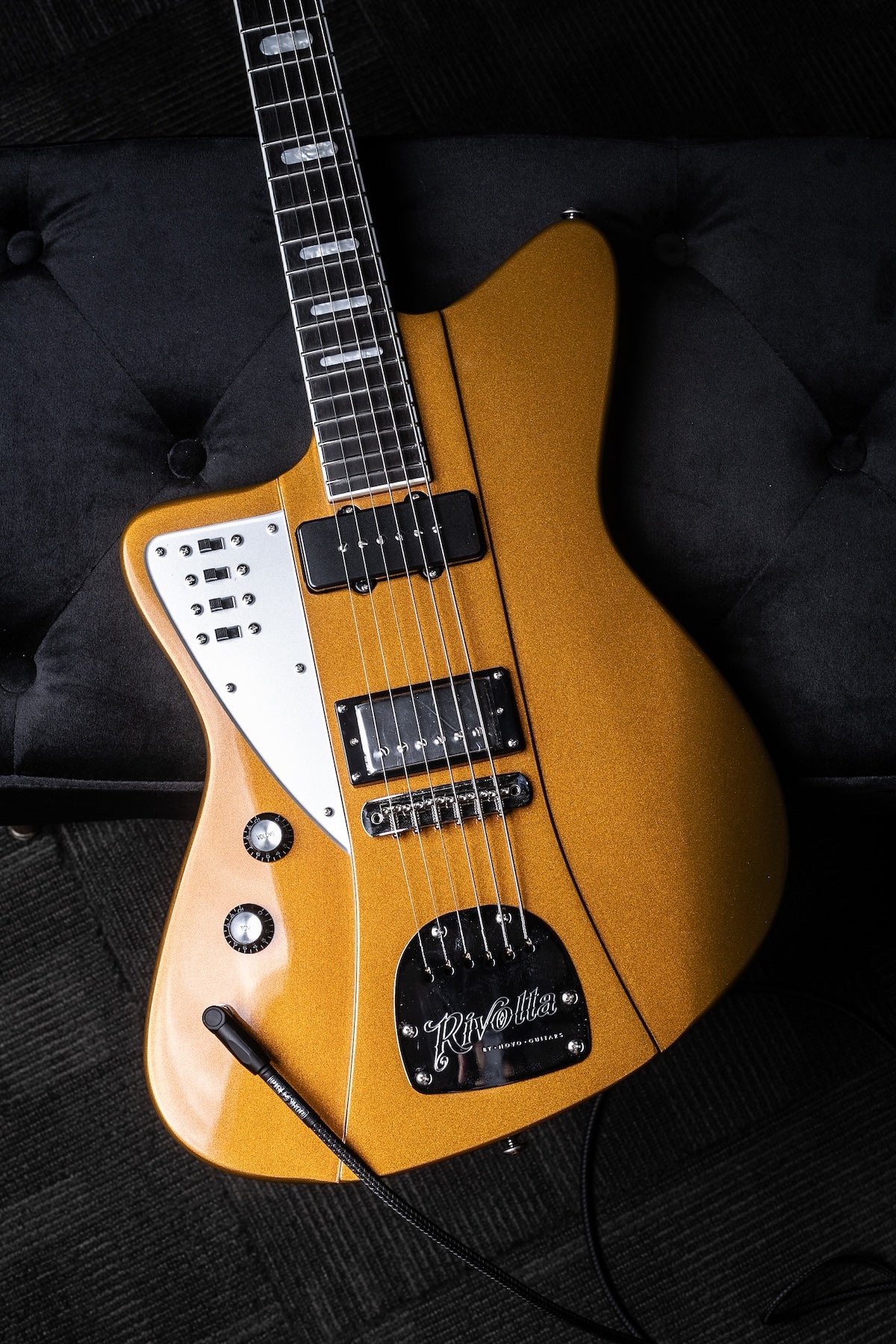

The Rivolta Mondata Baritone LH (Left-Hand) features an ultra lightweight Simarouba solid body with a refined raised center-block, 1-piece set Roasted Maple neck with a satin finish for improved comfort and playability, hand rolled Ebony fretboard with our new oval Pearloid inlays, 24 medium jumbo frets, JM style bridge & custom aluminum Rivolta‘Vibra-tail’ tailpiece for easy string changing and classic offset string resonance.

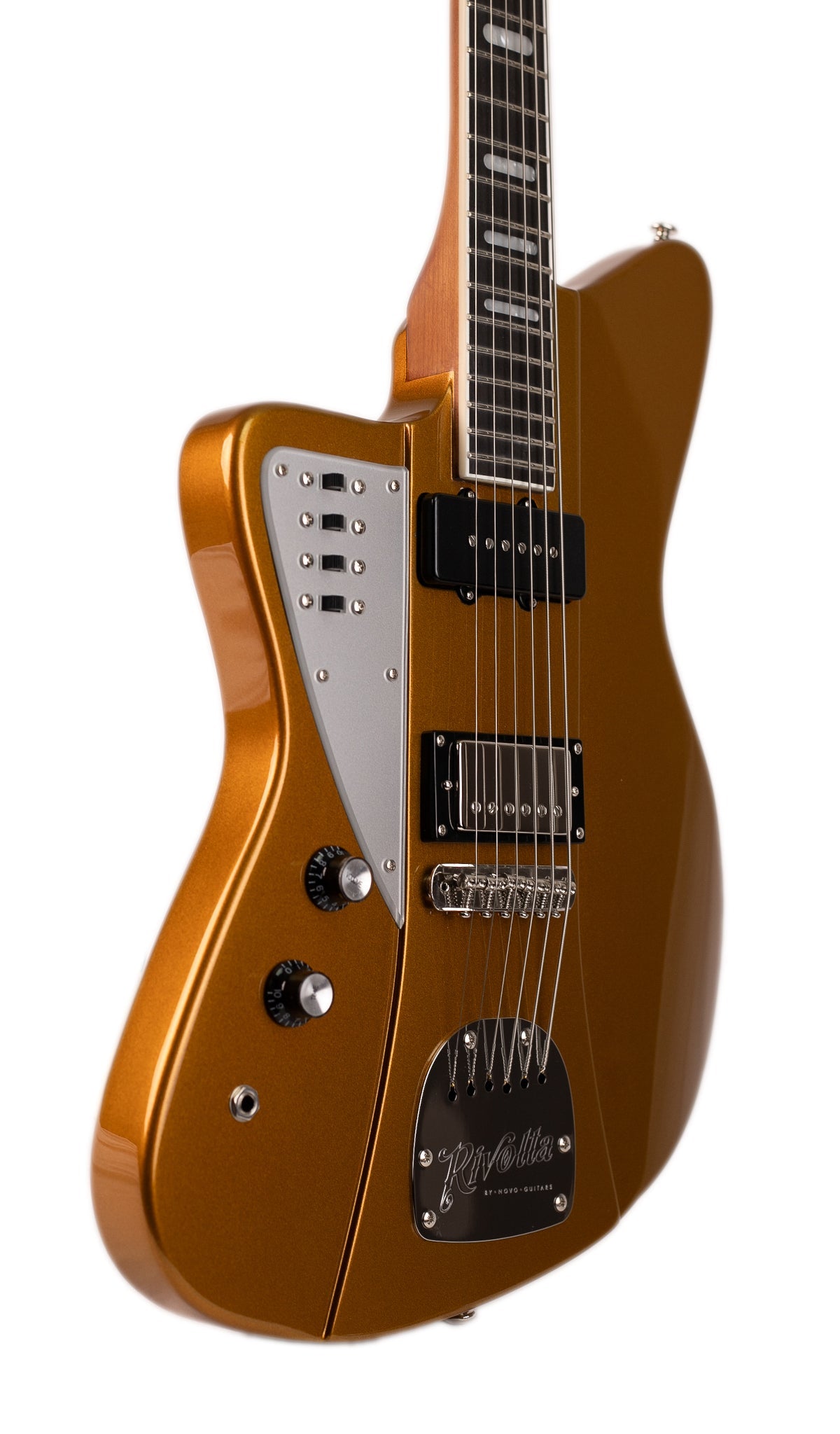

Under the hood, the Rivolta Mondata Baritone features our new Rivolta Custom JM style neck pickup and vintage voiced Rivolta Custom Humbucker in the bridge. The simple, single vol/tone controls are complimented by 4 x pickguard mounted toggle switches to offer pickup on/off, coil split and in/out phase options.

Body & Hardware

Body Finish: Gloss
Body Wood: Lightweight Simarouba w/ Raised Center Block
Bridge: Adjustable JM Style (10mm String Spacing)
Hardware: Nickel
Knobs: Black Reflector w/ Silver Cap
Pickguard / Truss Cover: Plexi
Tailpiece: Custom Nickel-plated Aluminum

Neck & Headstock

Fretboard Radius: 10”
Fretboard Wood: Bound Ebony w/ Rolled Edges
Frets: 24 Medium Jumbo
Headstock Finish: Gloss
Inlays: Pearloid/MOTO Oval
Neck Carve Shape: Chunky C+
Neck Depth @ 1st Fret: .850”
Neck Depth @ 12th Fret: .980”
Neck Finish: Satin Natural
Neck Width @ 12th Fret: 2.080"
Neck Wood: Set 1pc Roasted Maple
Nut Material: Bone
Nut Width: 1.687"
Scale: 28”
Side Dots: Black
Strings: 14-68 (EXL 157)

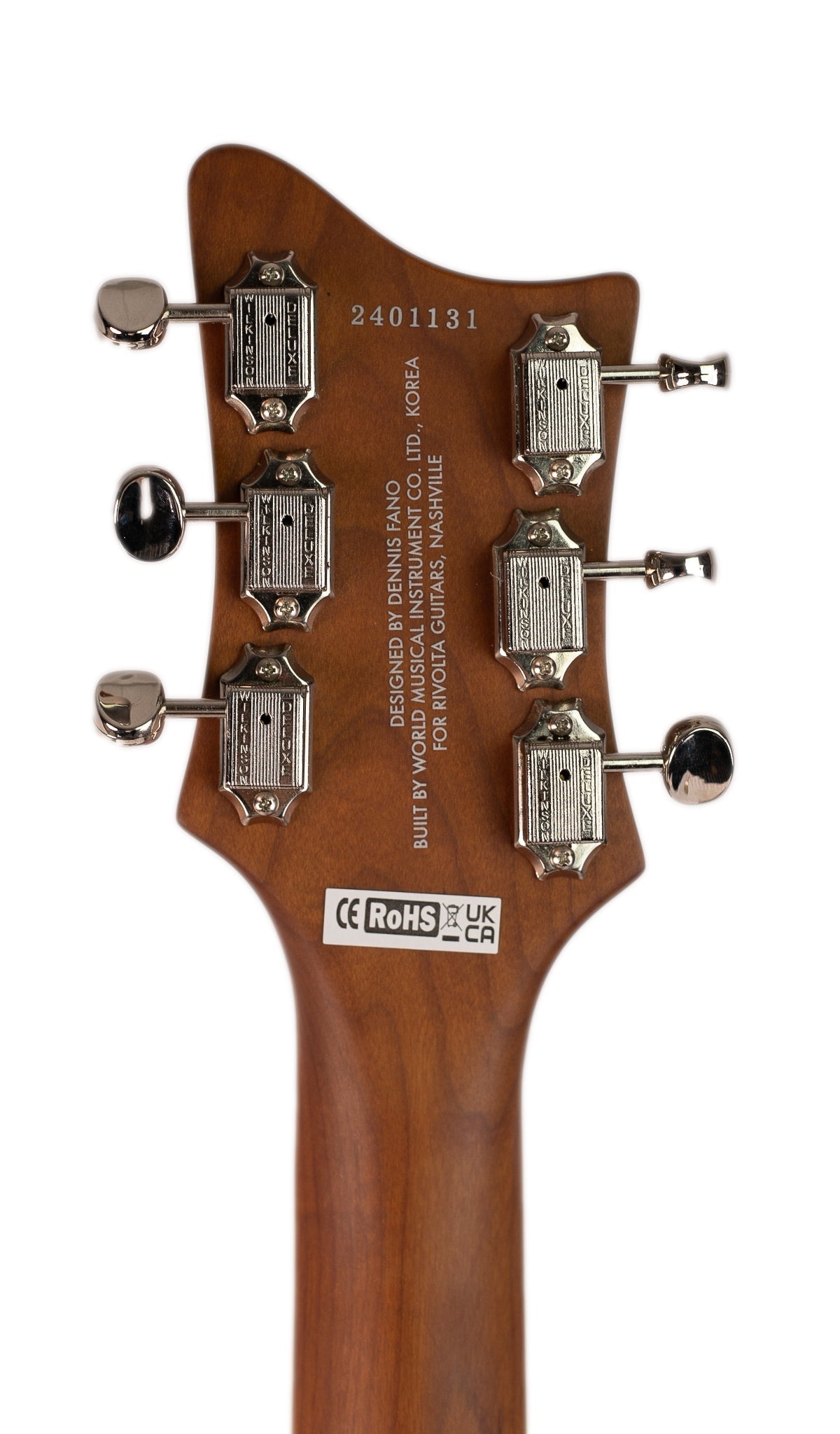

Tuners: Wilkinson Vintage Style w/ Nickel Buttons

Pickups & Electronics

Bridge: Rivolta Custom Humbucker (11k ohm)
Neck: Rivolta Custom JM style (7.5K ohm)
Wiring: Vol, Tone & 4 x Slider Switches
Switch Controls: Bridge On/Off (Right), Neck On/Off (Middle Right), Bridge Split Coil (Left Middle) *This switch will also act as a Bridge ON in Split Coil mode when both pickup switches are in the OFF position (all switches Up position), In/Out Phase (Left)

Dimensions & Weight

Average Weight: 7.5 lbs
Body Depth: 1 25/32”
Body Length: 20”
Body Width @ Lower Bout: 14 1/2”
Body Width @ Upper Bout: 12”
Overall Depth: 2 15/32”
Overall Length: 42”

View full details

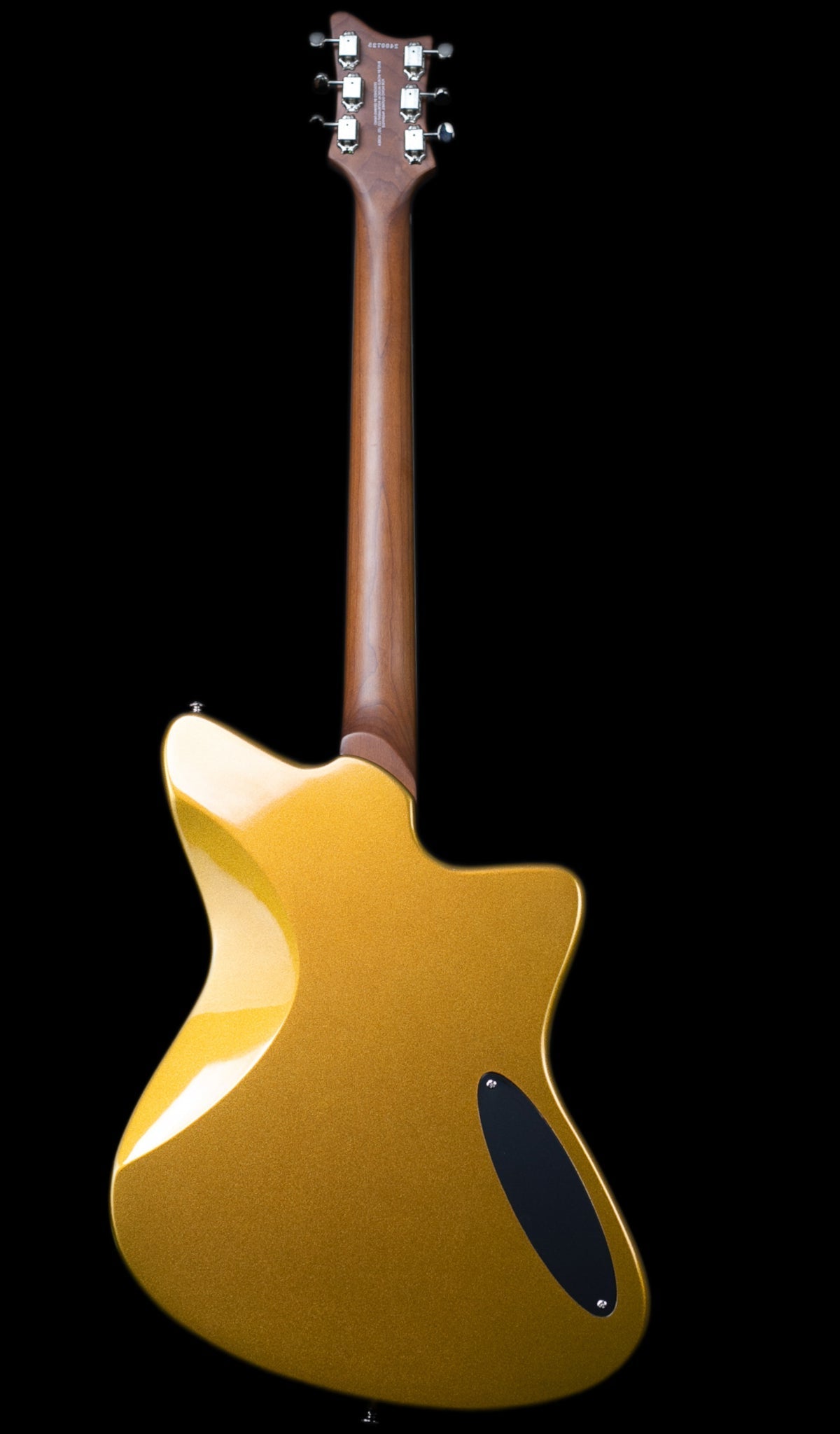

ULTRA-LIGHTWEIGHT SIMAROUBA BODY

Simarouba is an extremely lightweight and sustainable wood which offers great sustain and beautiful straight grain patterns, similar to that of Korina.

ONE PIECE SATIN ROASTED MAPLE NECK

Our new Roasted Maple necks offer improved structural stability & resistance to temperature and humid changes and the super smooth Satin finish enhances comfort and playability. Our technicians hand roll the edges of every bound Ebony fretboard which will make you instrument feel played-in and comfortable in the hand.

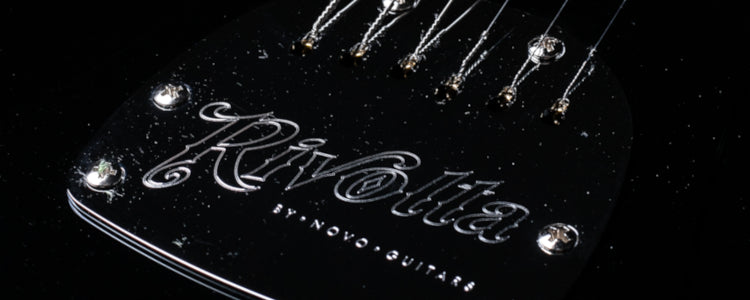

CUSTOM ALUMINUM "VIBRA-TAIL" TAILPIECE

Designed by Novo Guitars, the Rivolta ‘Vibra-Tail’ offers classic Offset string resonance behind the bridge and also covers the pre-routed tremolo cavity allowing for easy conversion to an offset style tremolo (not included).

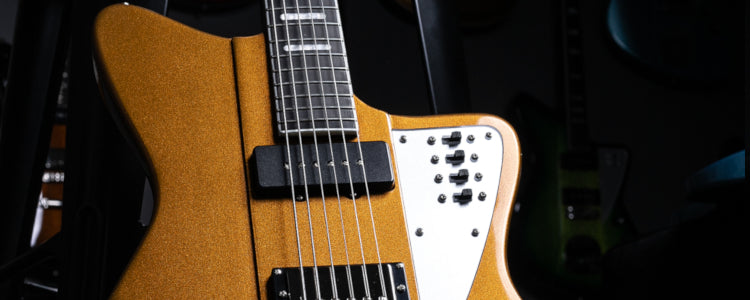

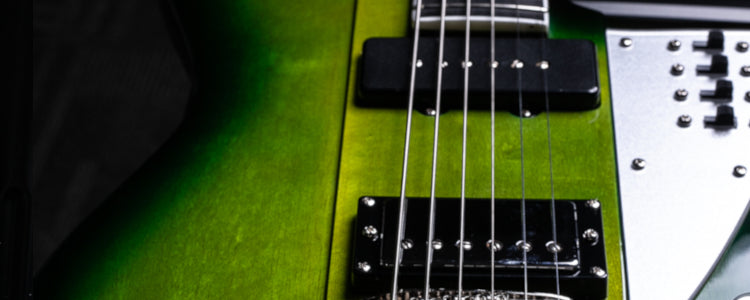

PICKUPS & ELECTRONICS

Our new Rivolta Custom JM neck pickup and vintage voiced Rivolta Custom Humbuckers are perfectly complimented by 500k pots and 4 x pick guard mounted switches to offer pickup on/off, coil split and in/out phase options.

MONDATA BARITONE DELUXE LH $1,399.00
