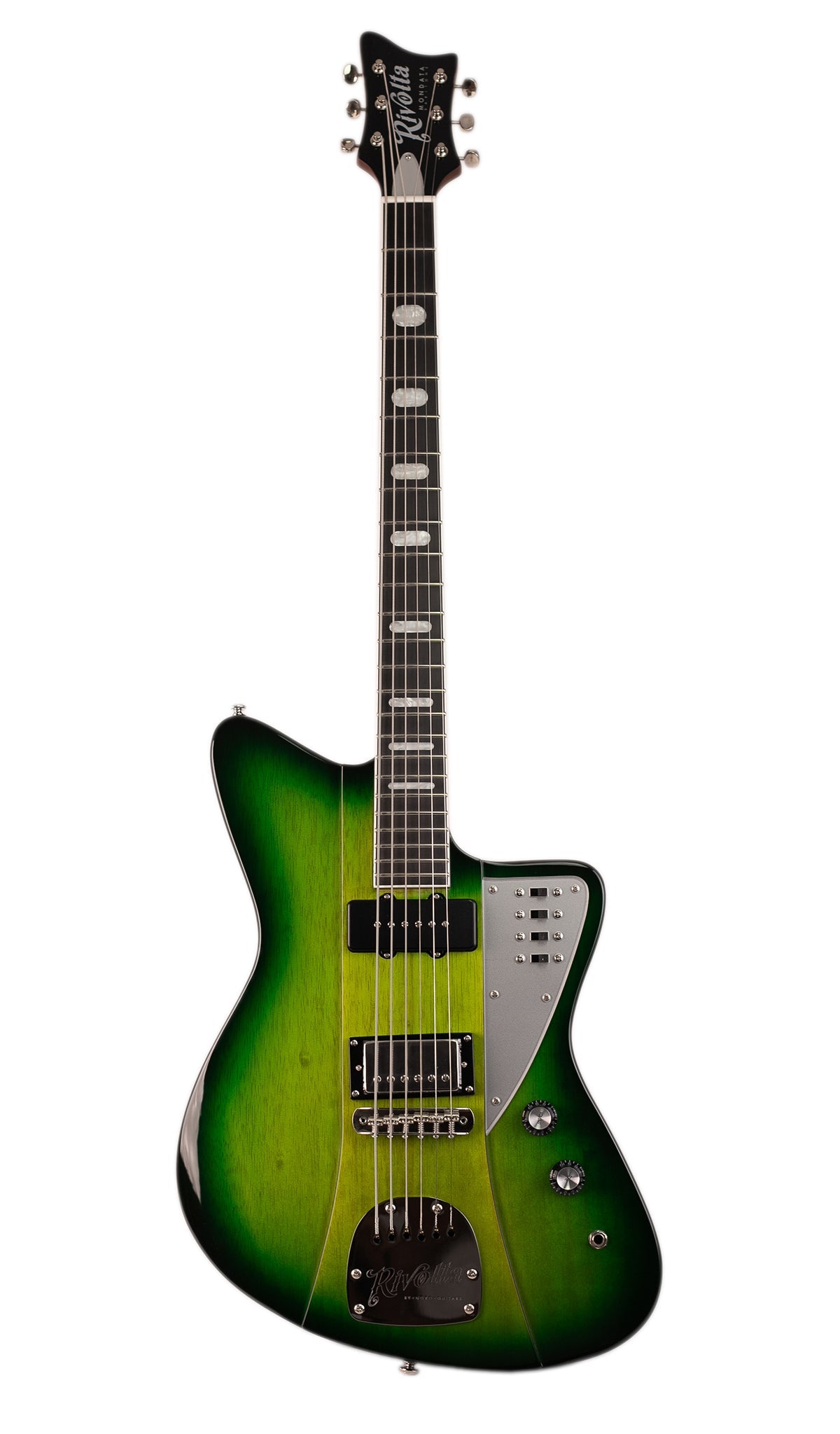

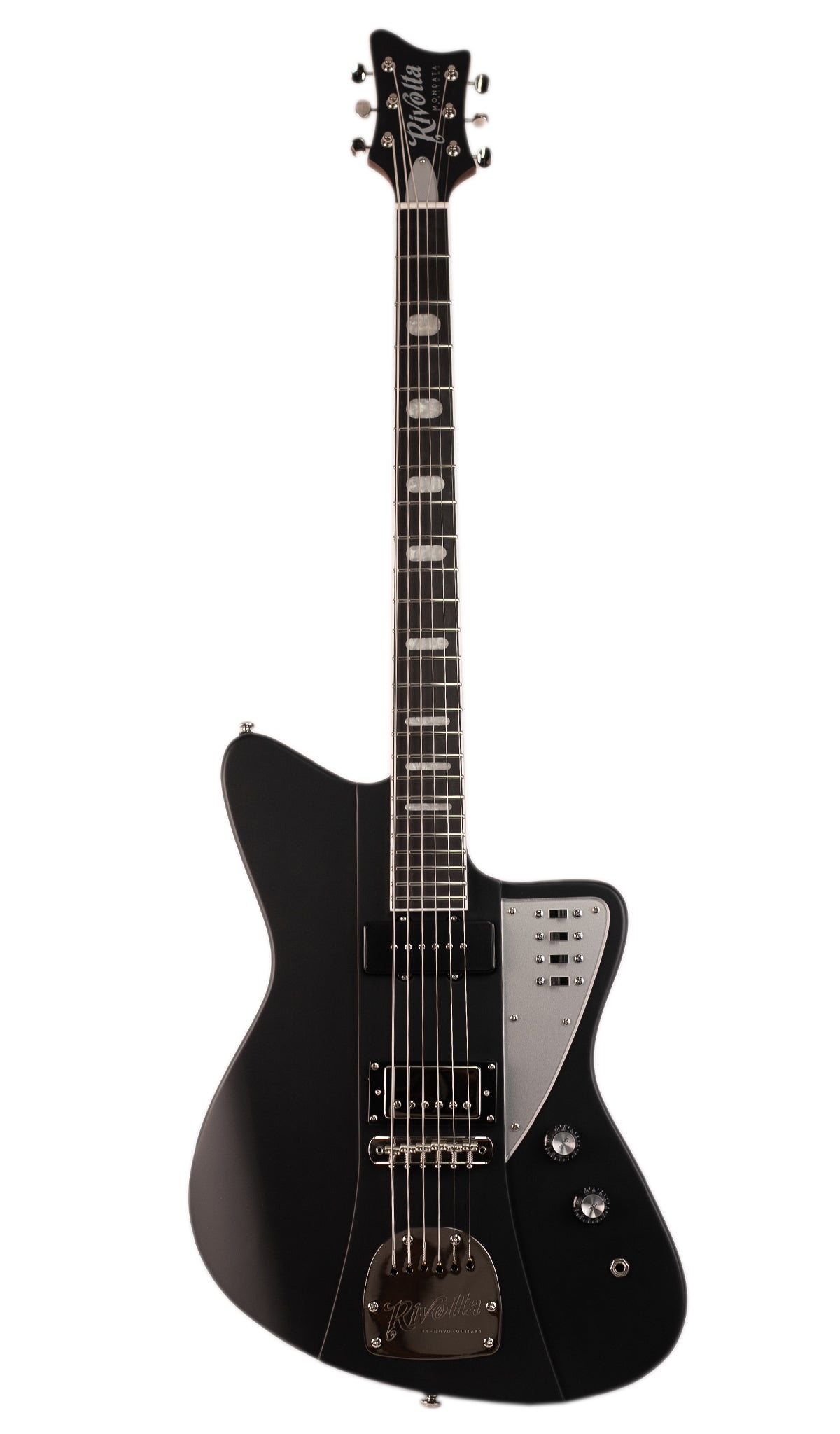

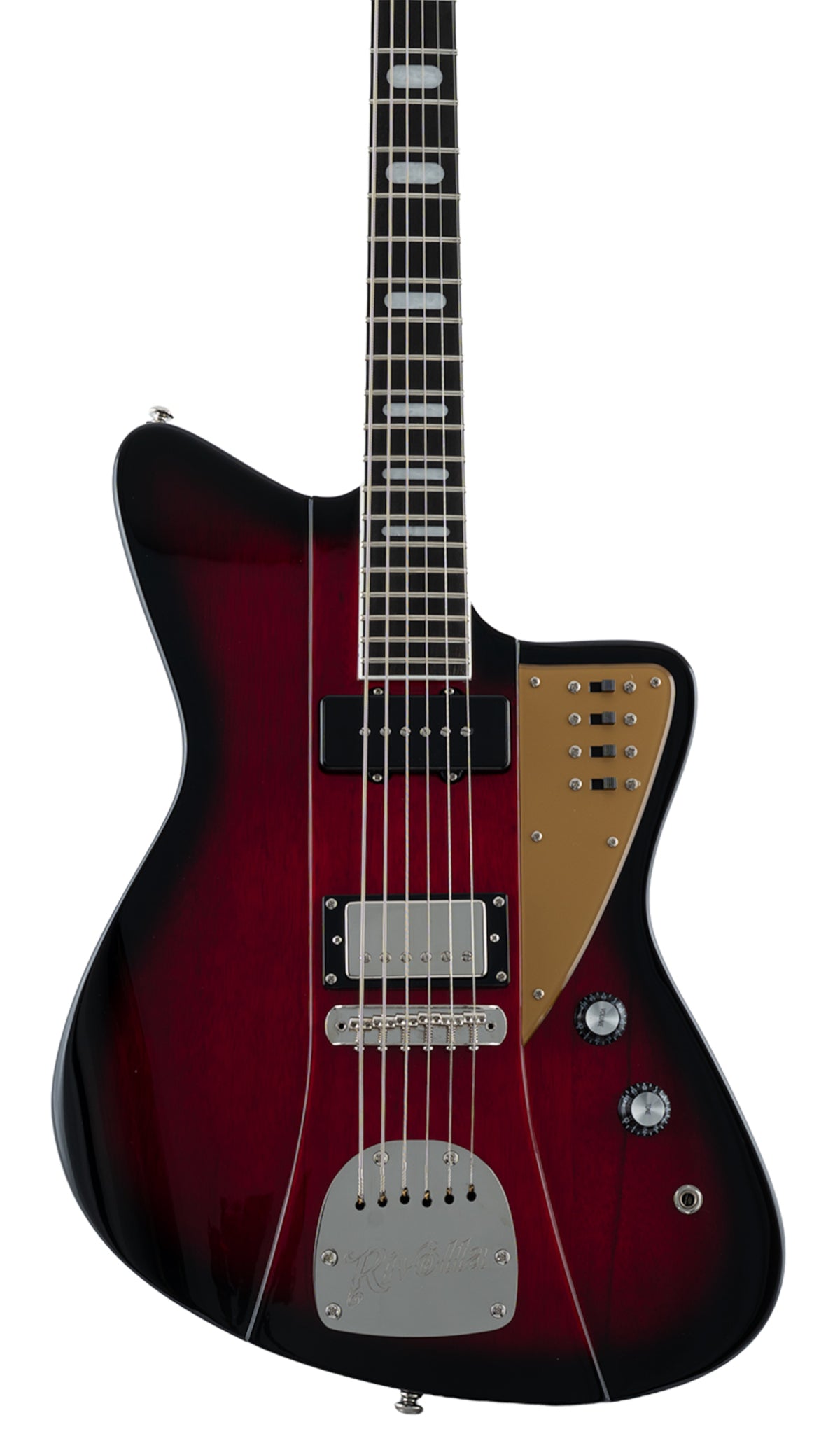

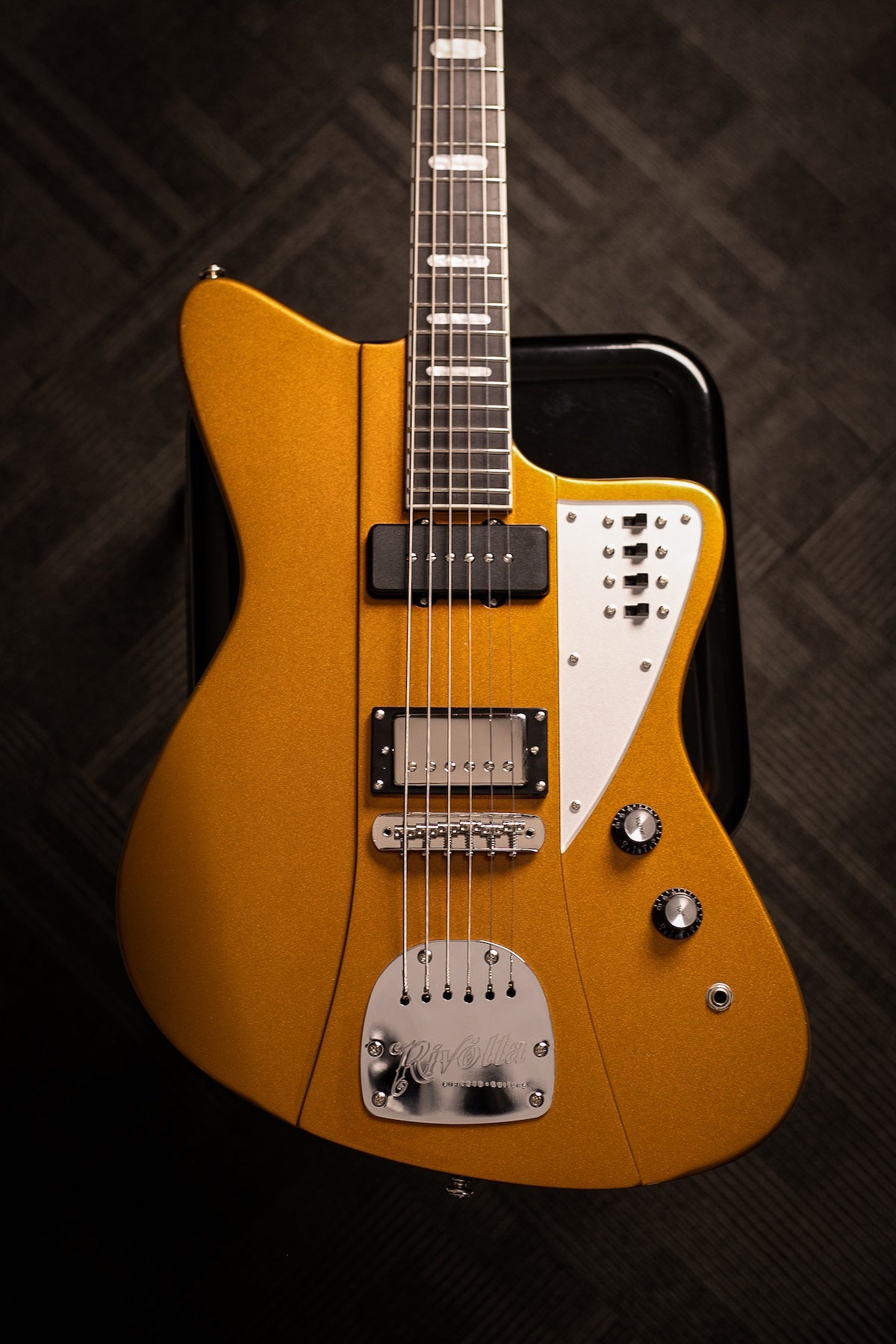

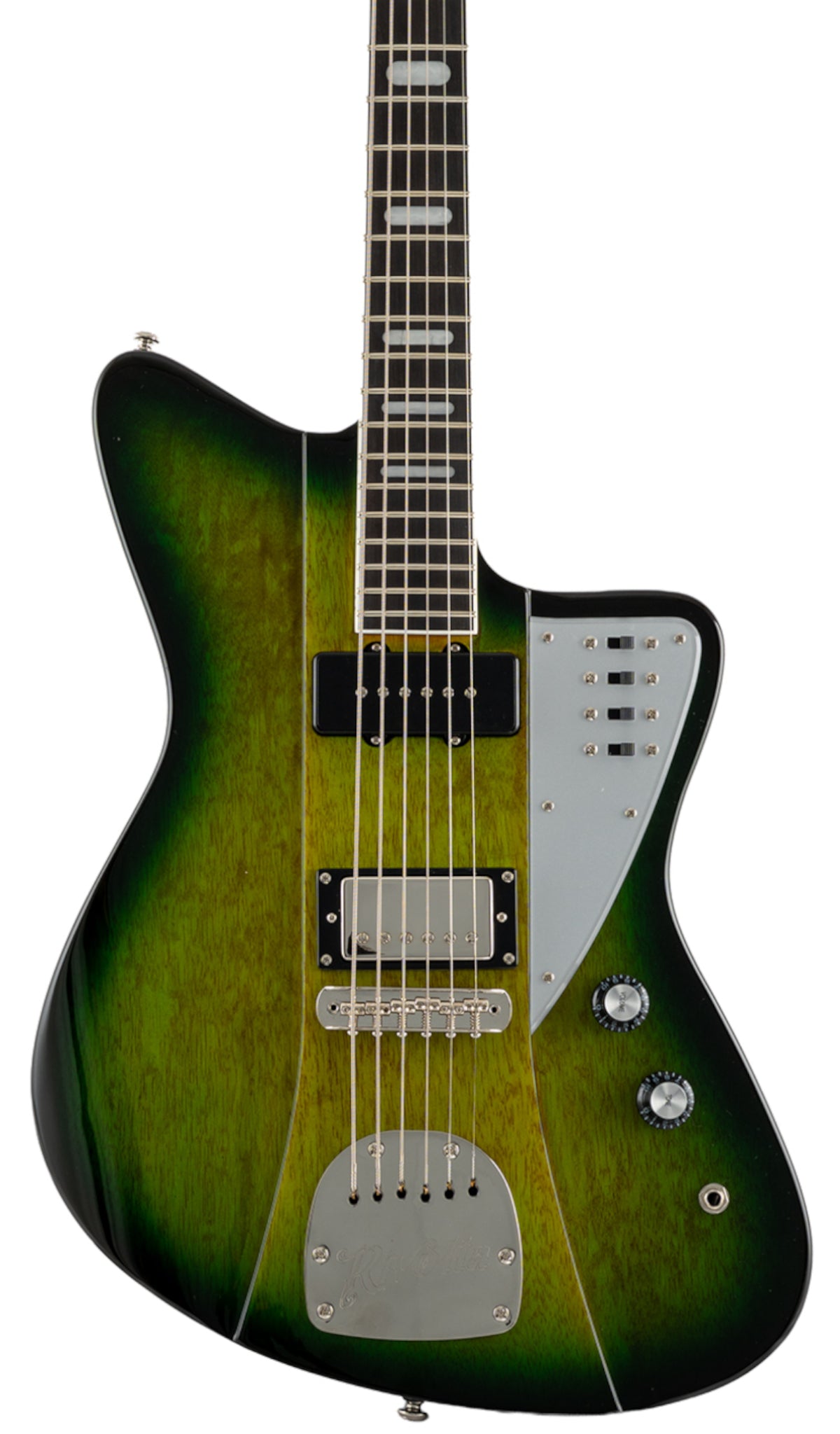

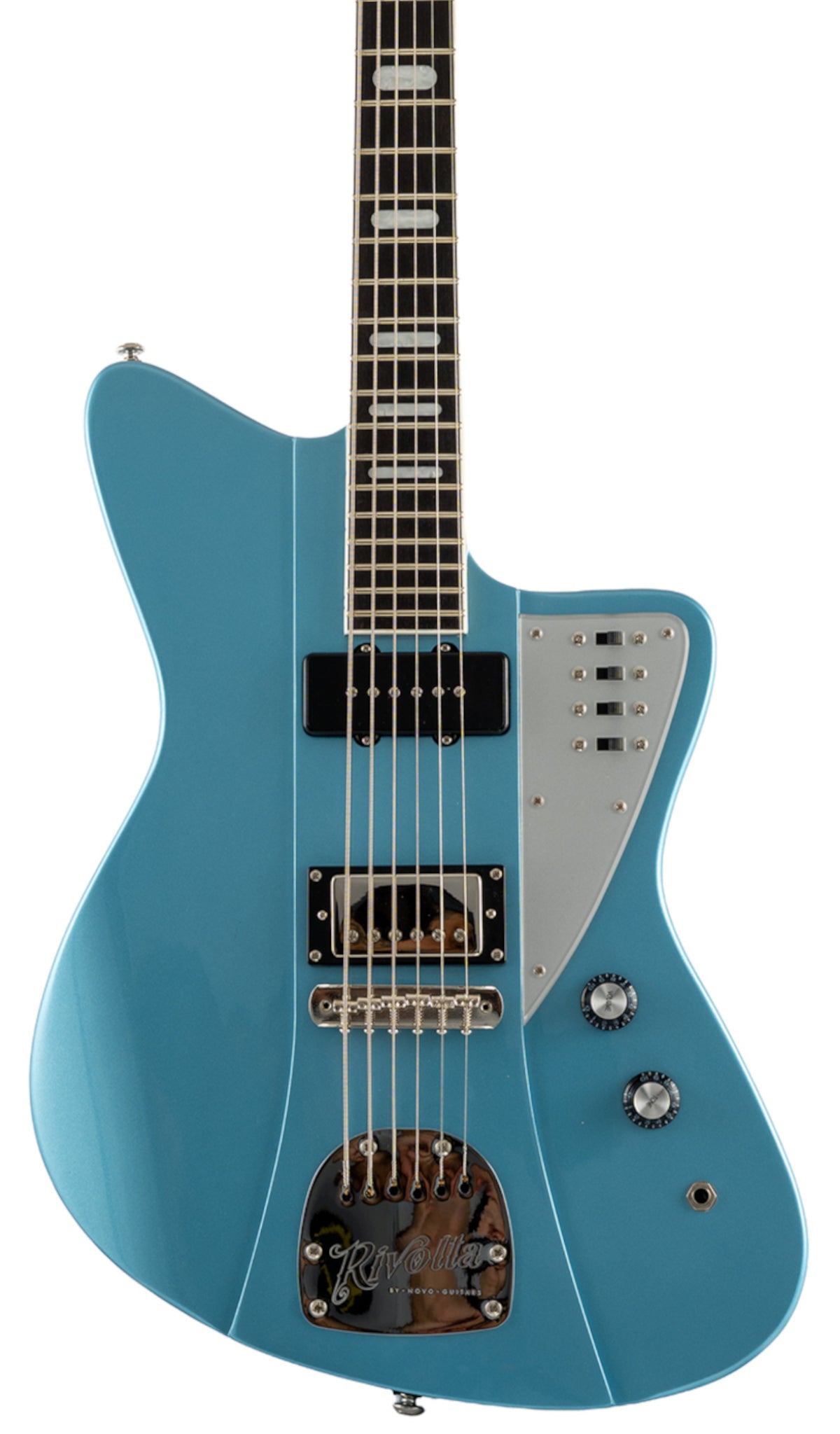

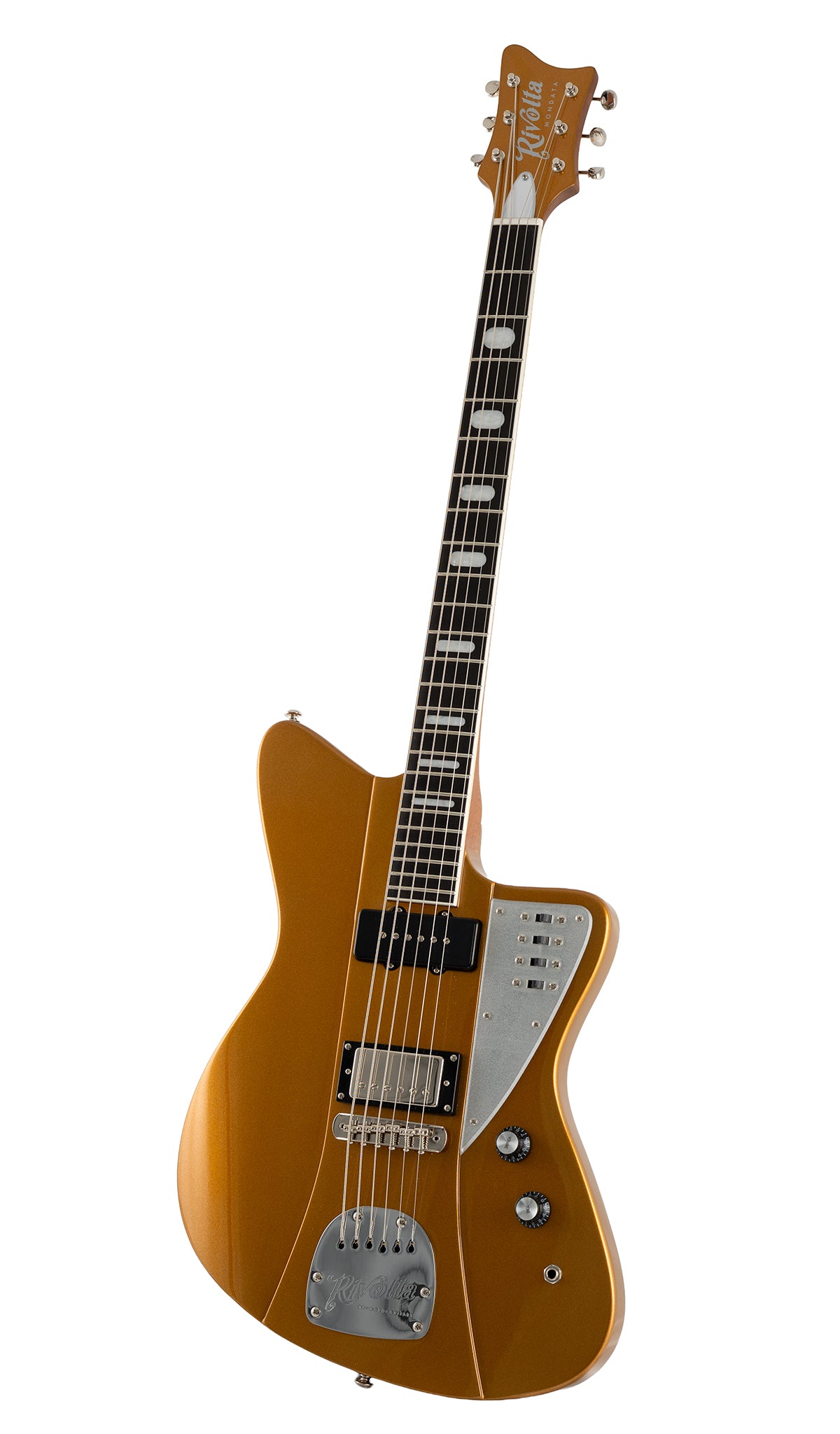

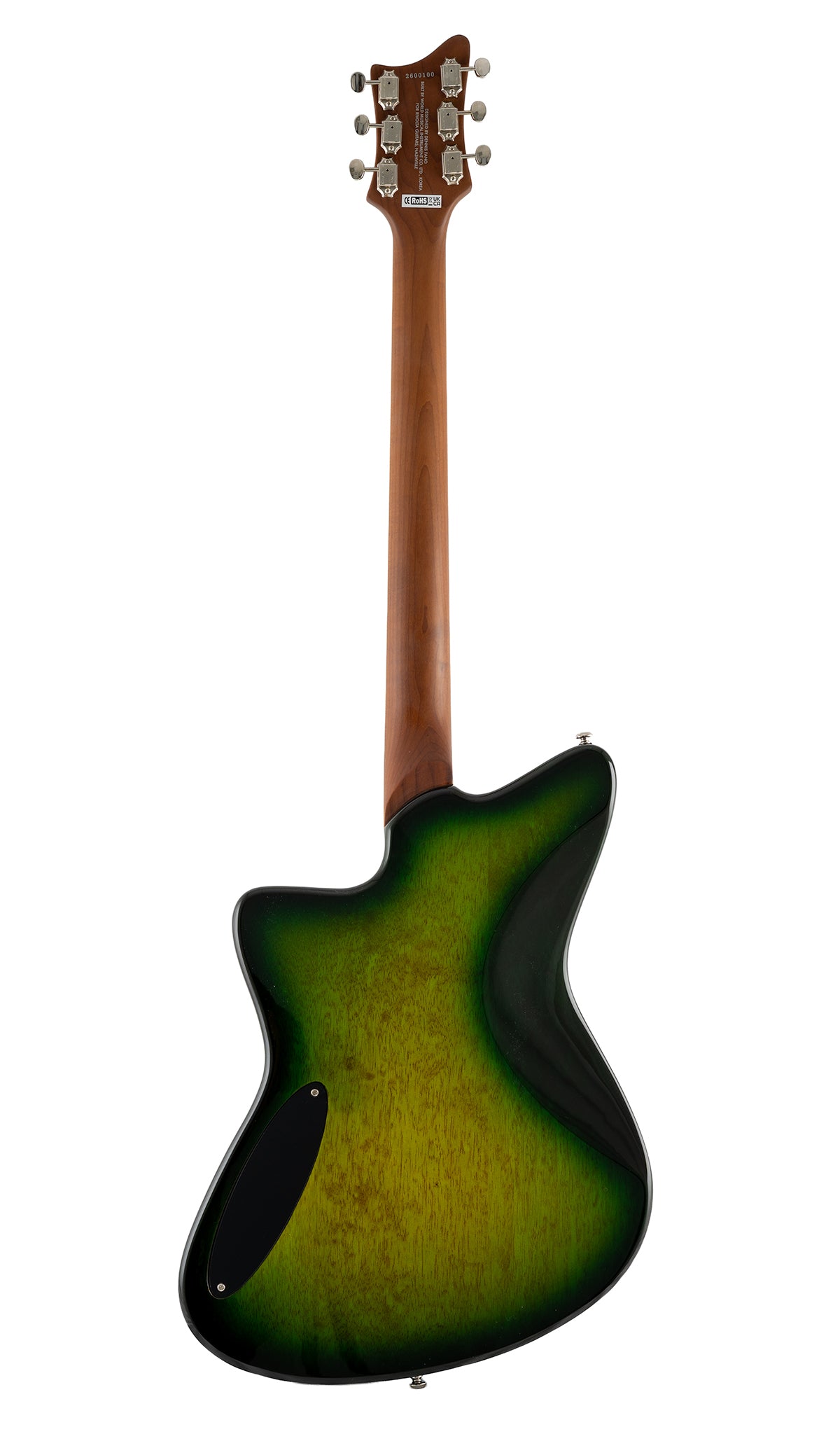

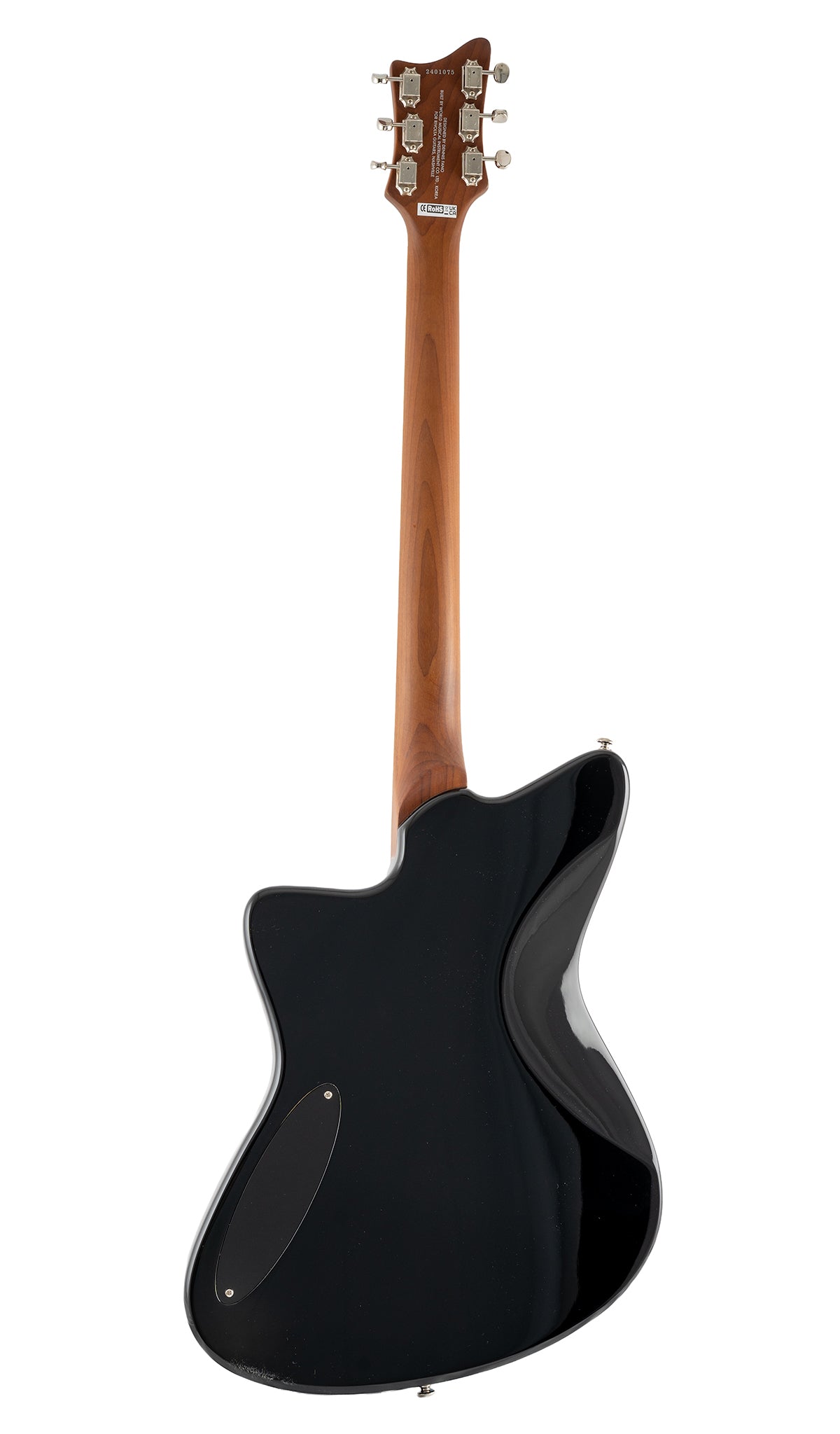

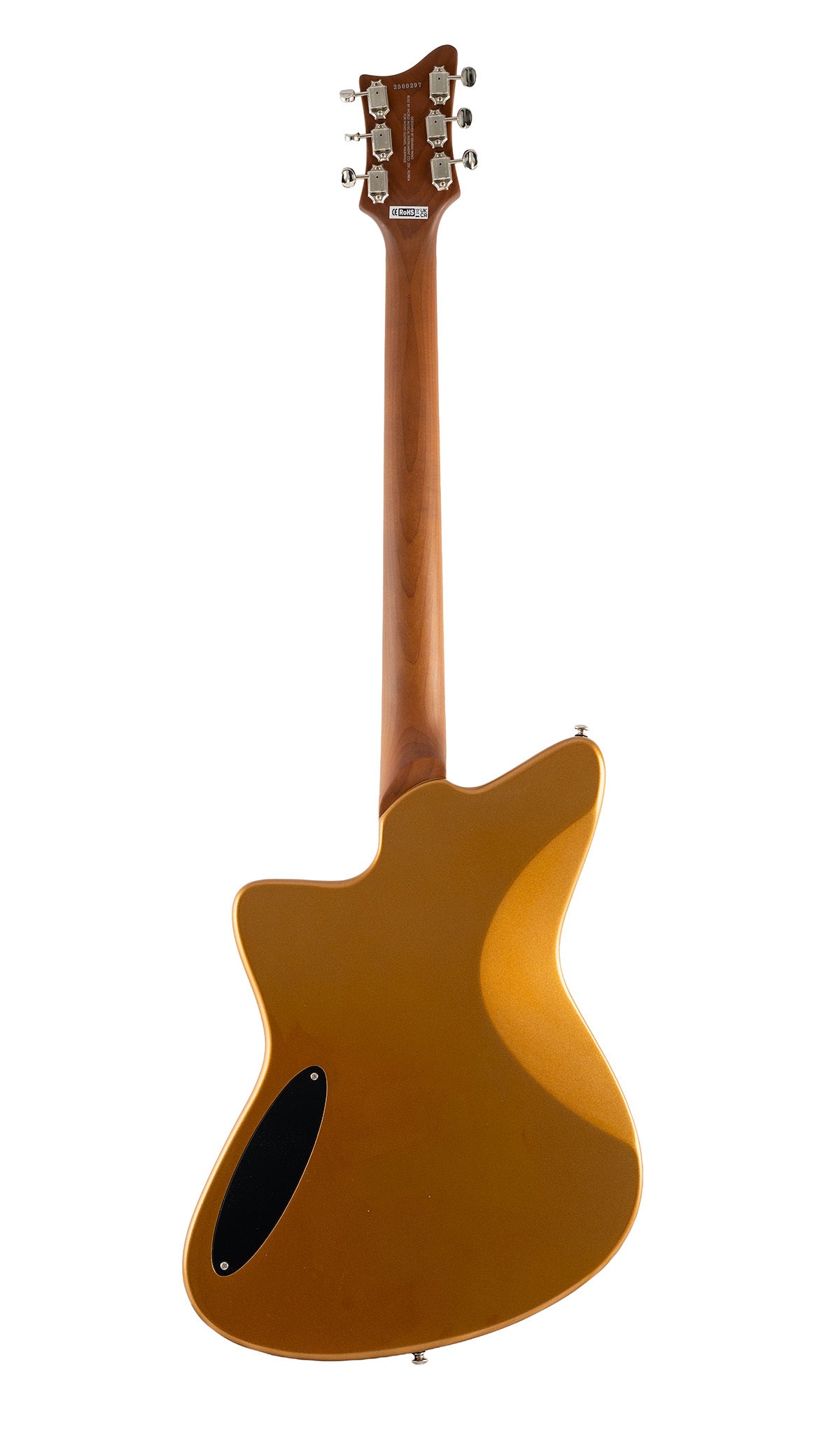

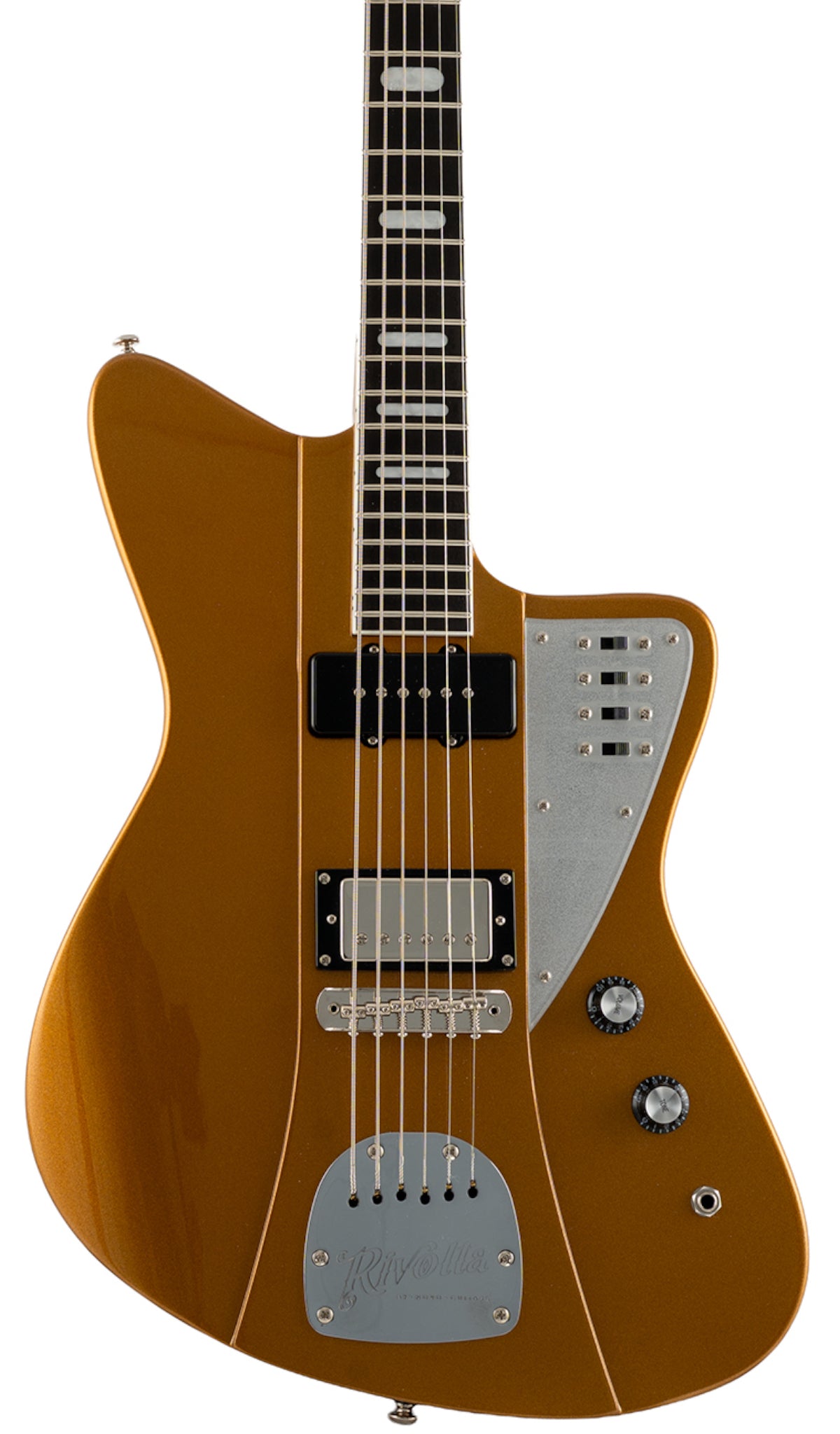

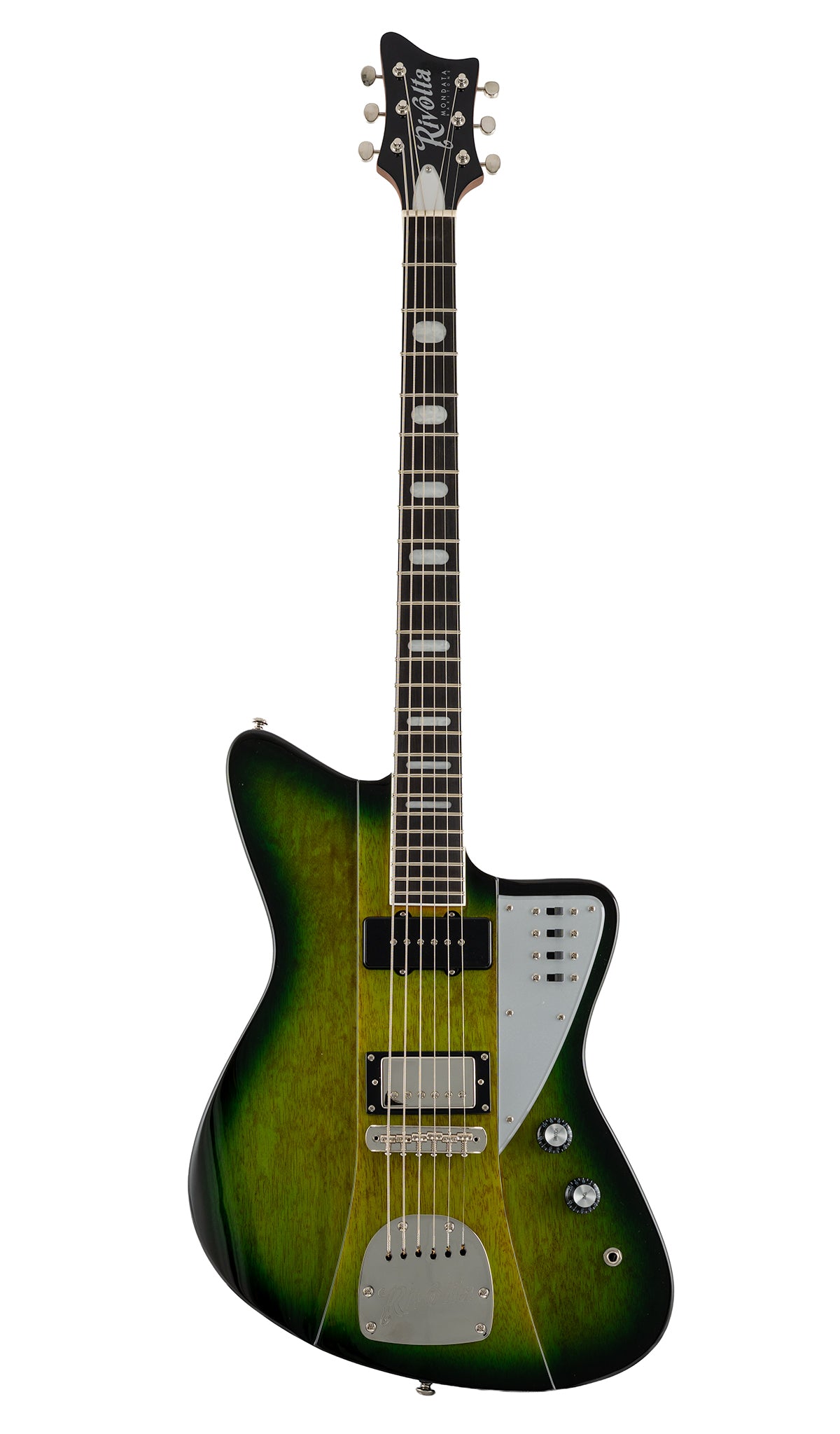

MONDATA BARITONE DELUXE

MONDATA BARITONE DELUXE

$1,399.00 USD
$1,399.00 USD
Sale Sold out

Low stock

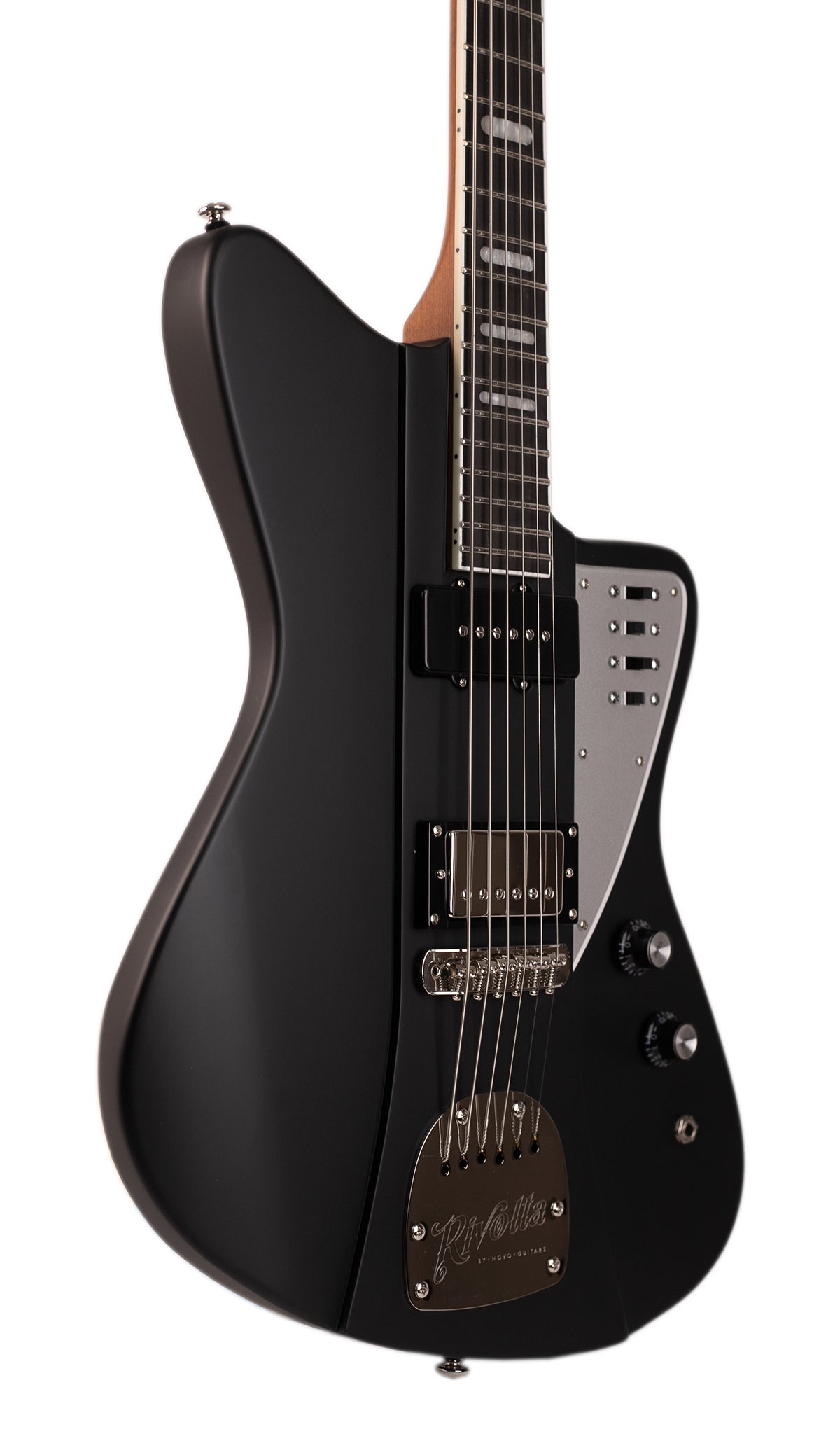

Revolution, Redefined.

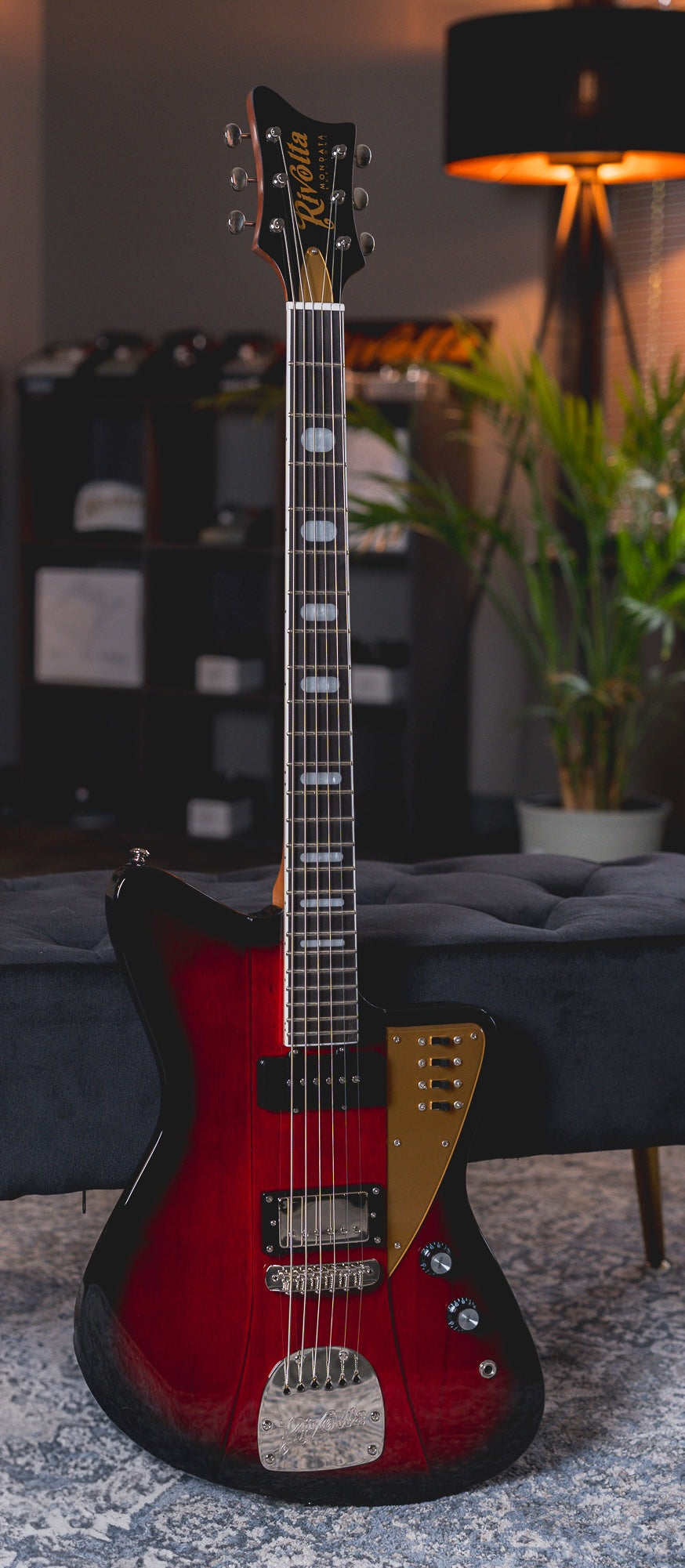

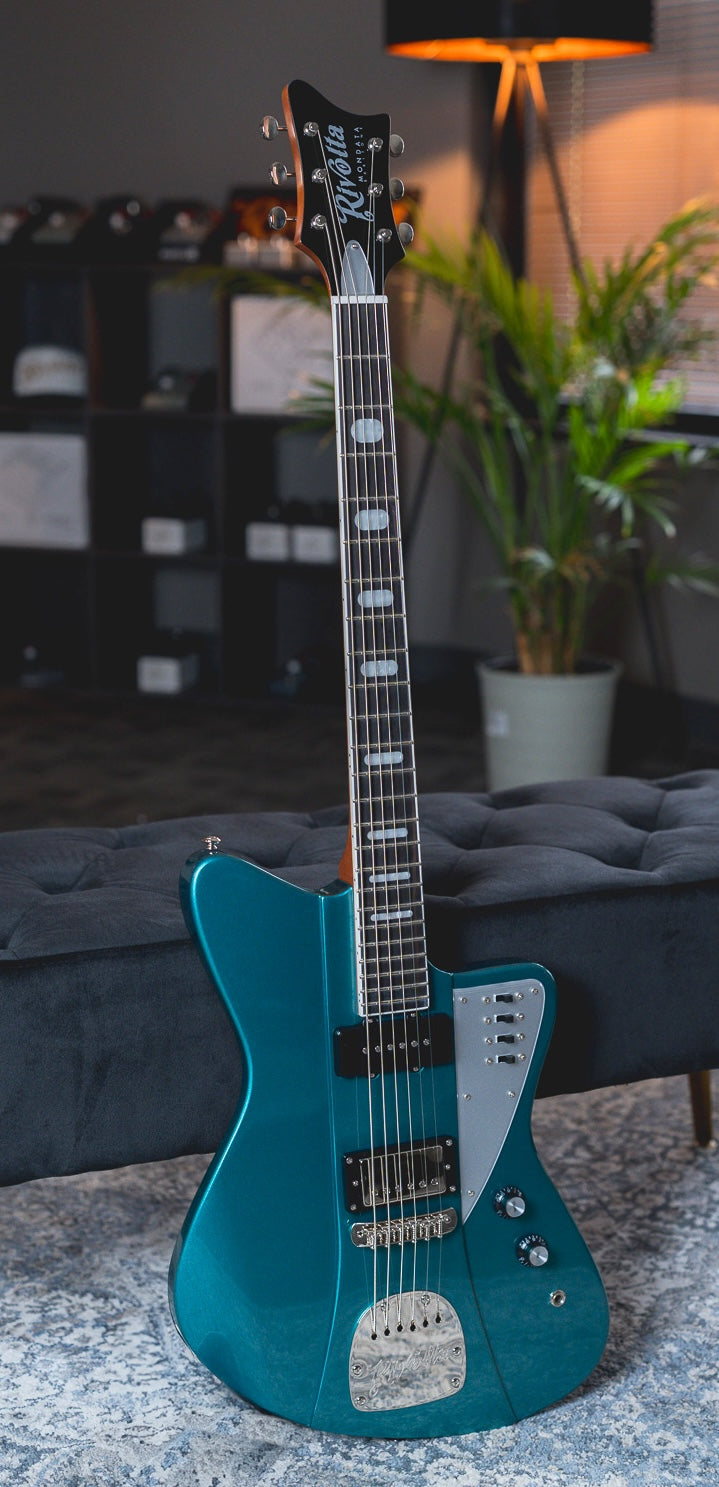

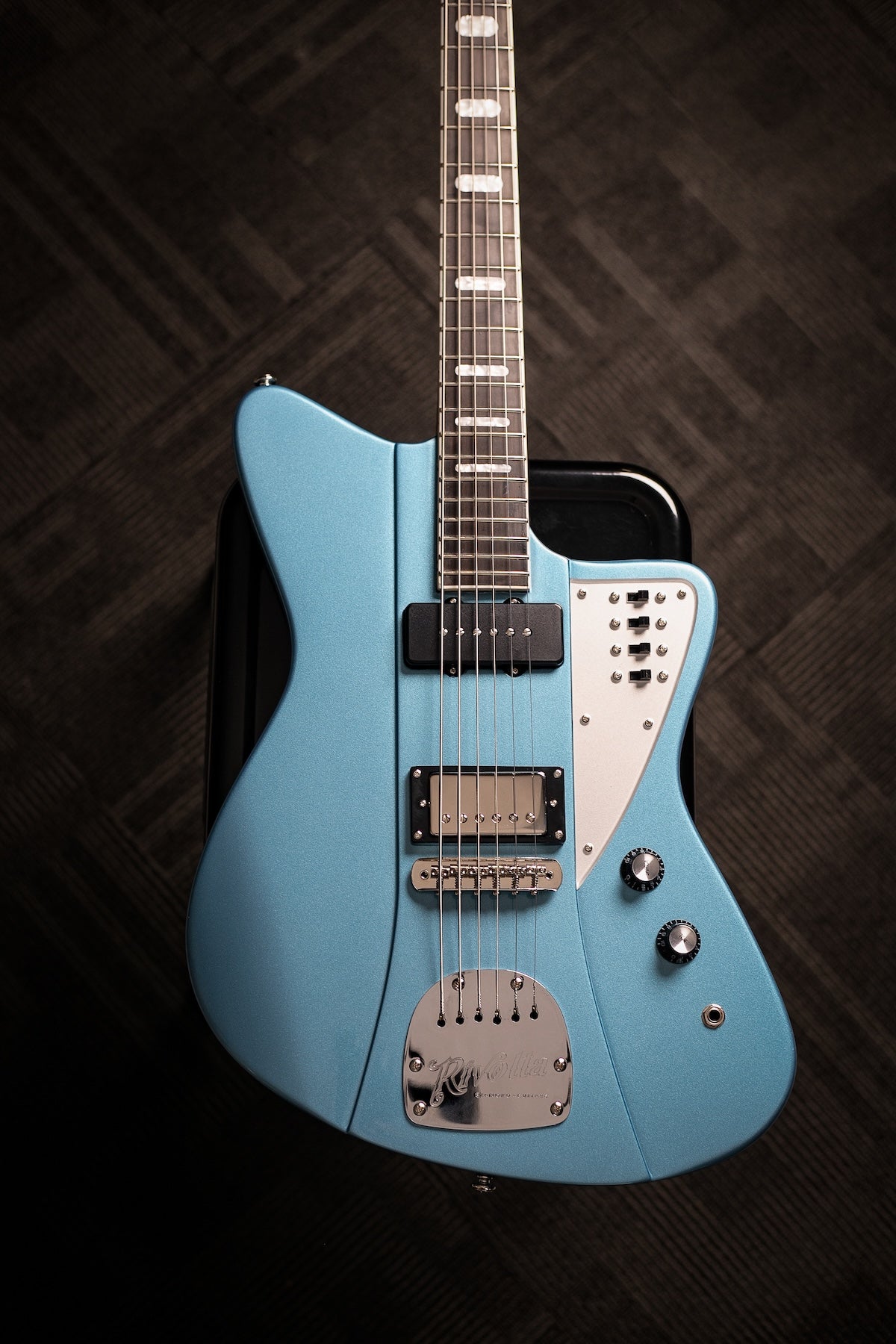

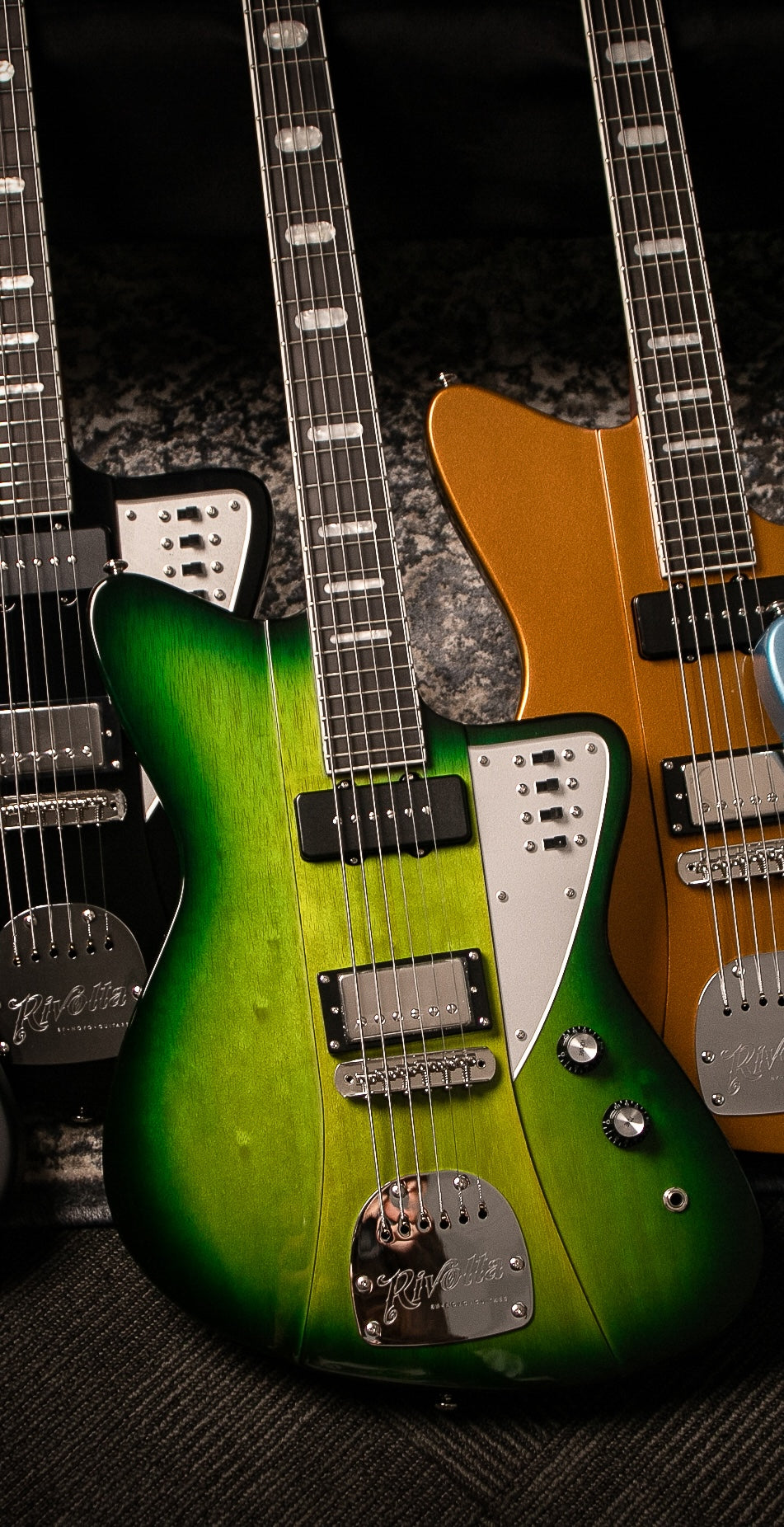

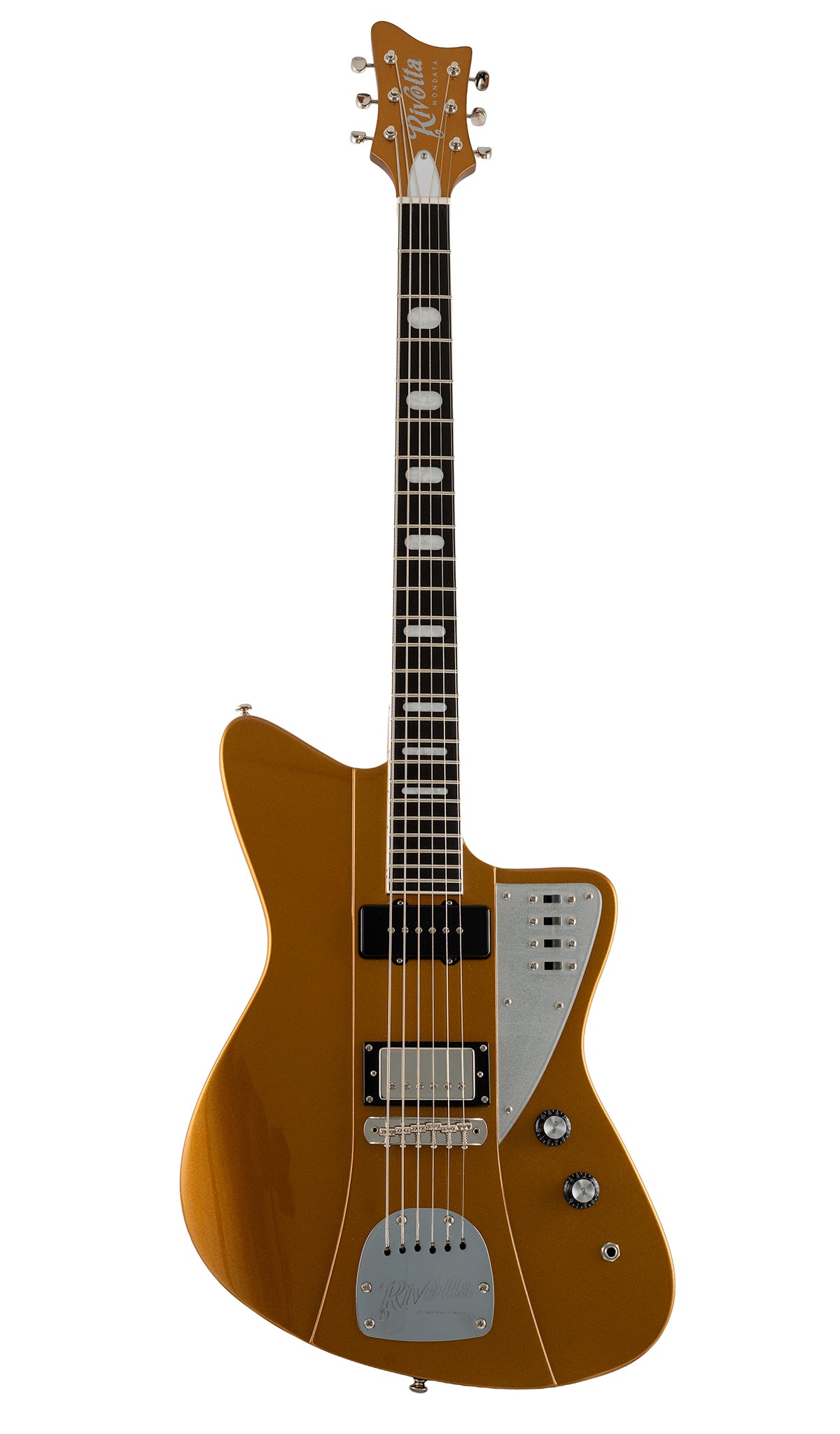

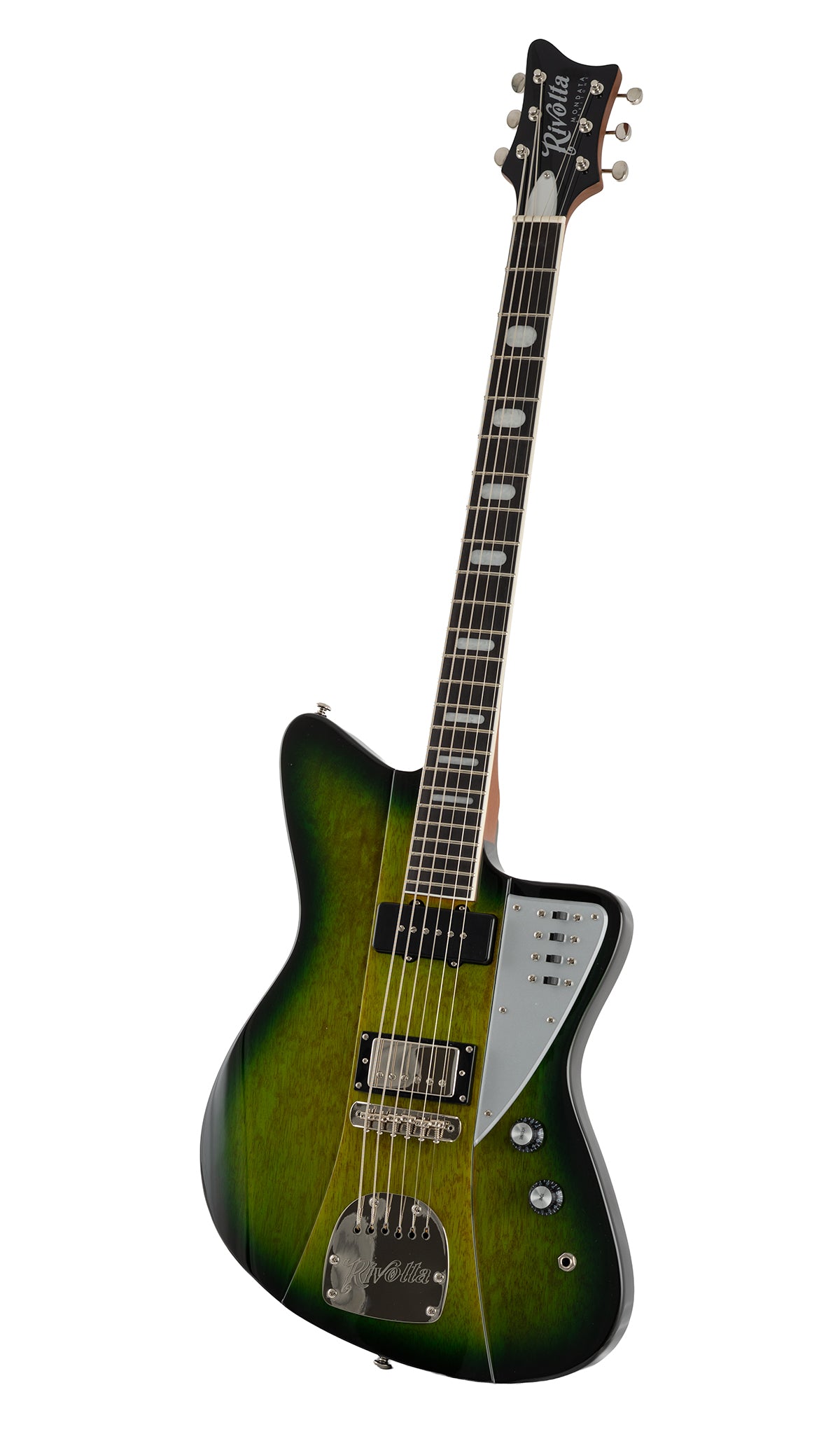

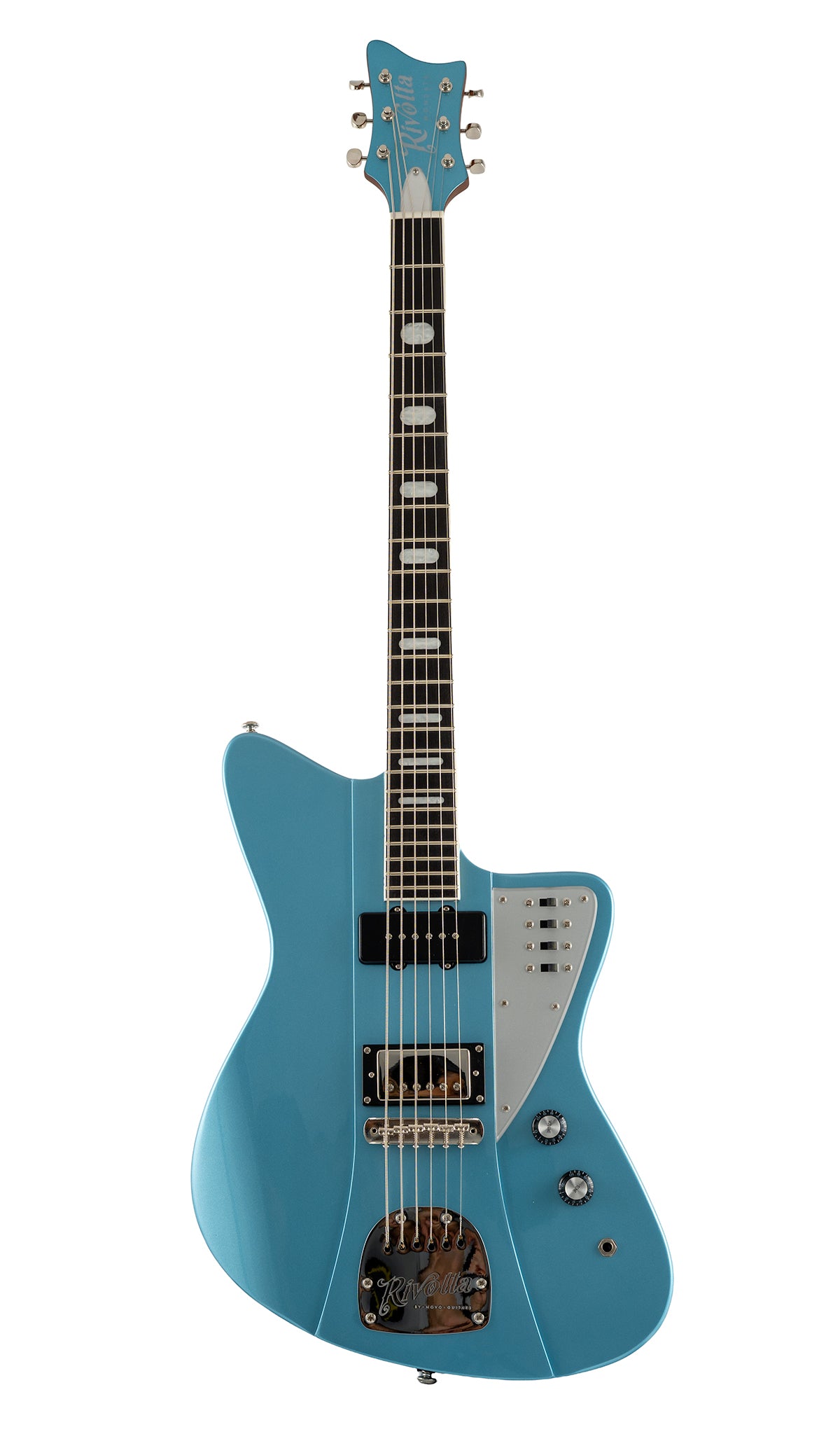

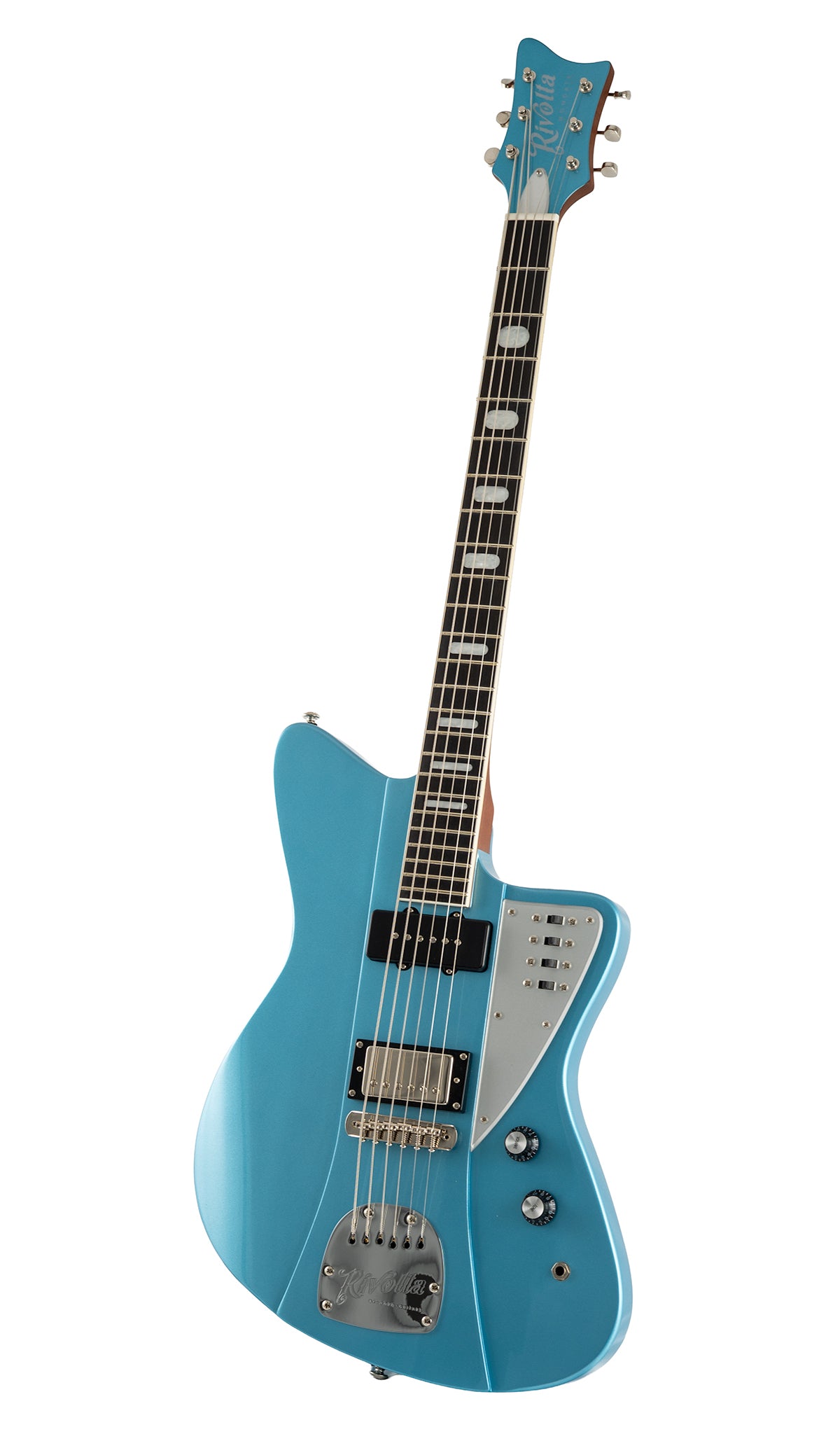

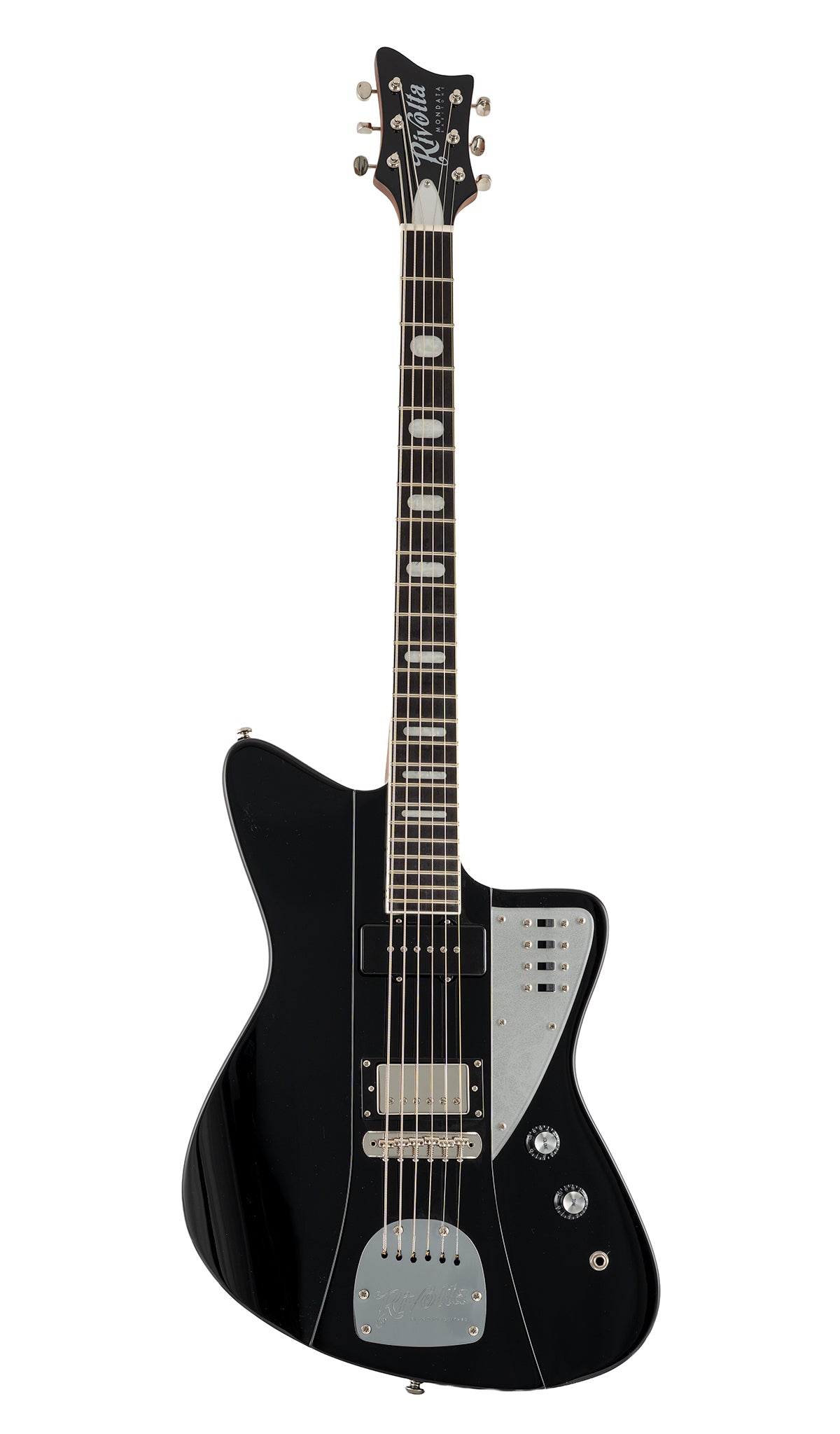

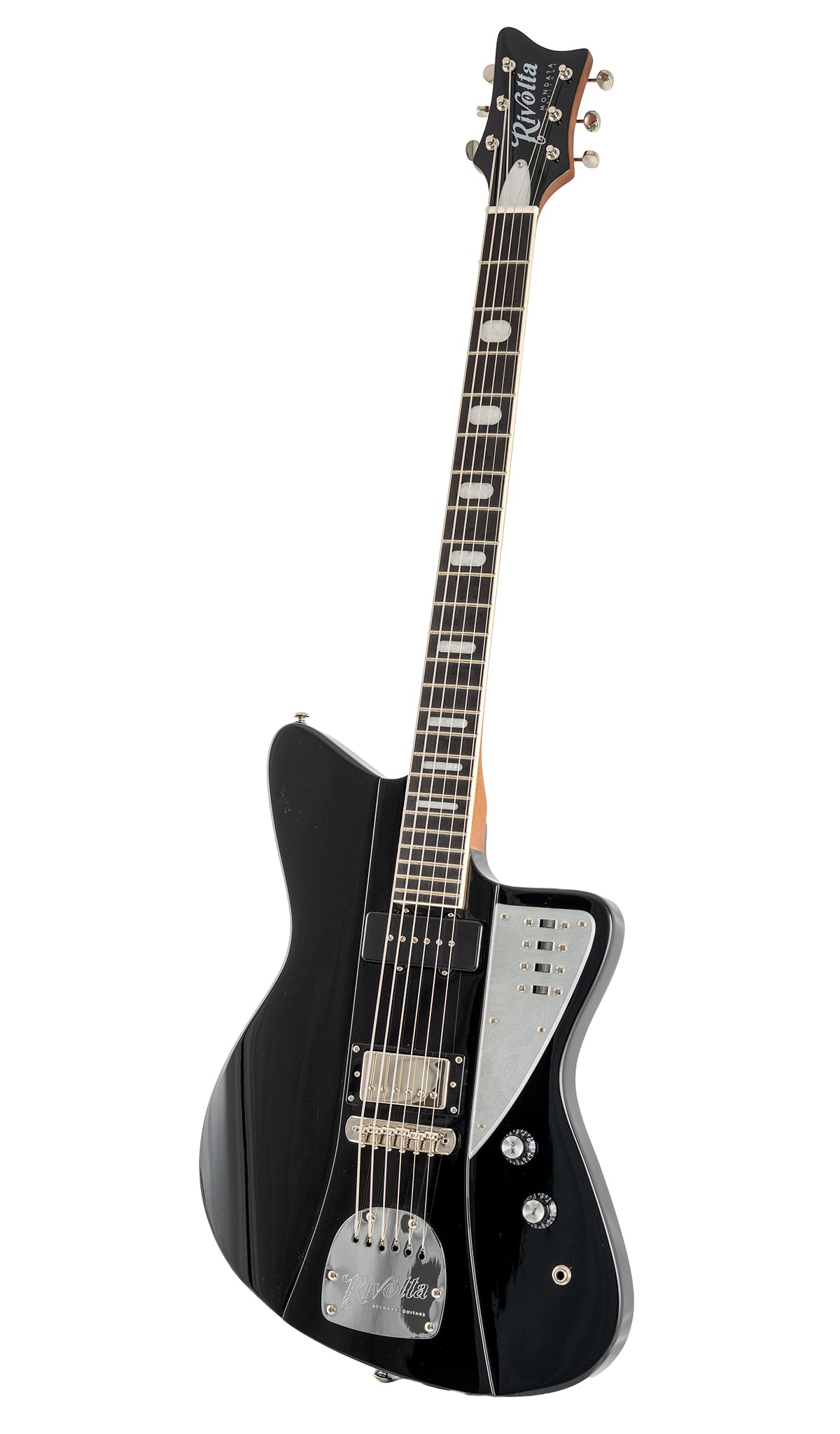

Updated for 2024, the new Rivolta Mondata Deluxe Baritone has been re-designed from the ground up by world renowned luthier & designer Dennis Fano (Novo Guitars).

The Rivolta Mondata Deluxe Baritone features an ultra lightweight Simarouba solid body with a refined raised center-block, 1-piece set Roasted Maple neck with a satin finish for improved comfort and playability, hand rolled Ebony fretboard with our new oval Pearloid inlays, 24 medium jumbo frets, JM style bridge & custom aluminum Rivolta ‘Vibra-tail’ tailpiece for easy string changing and classic offset string resonance.

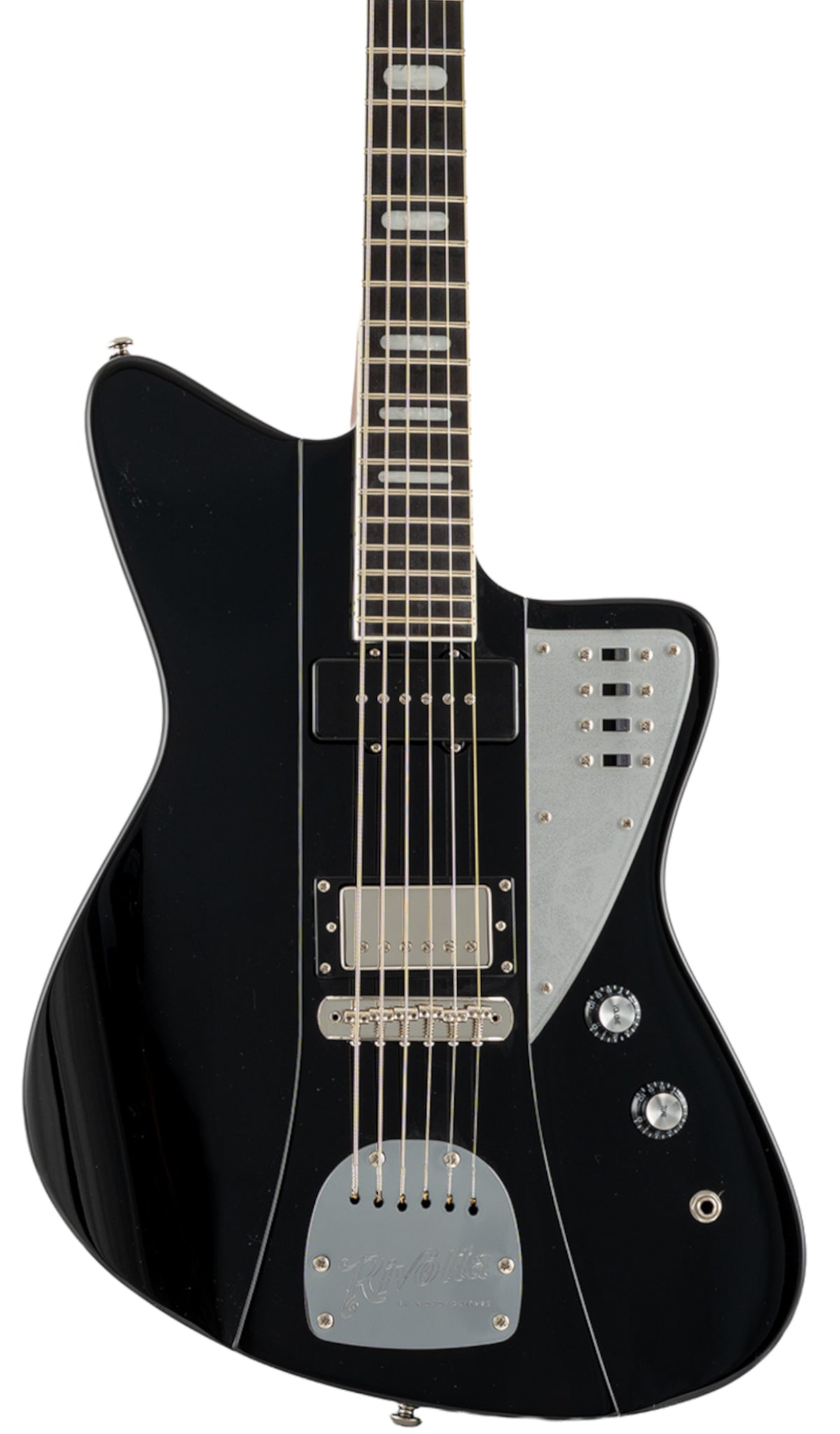

Under the hood, the Rivolta Mondata Deluxe Baritone features our new Rivolta Custom JM style neck pickup and vintage voiced Rivolta Custom Humbucker in the bridge. The simple, single vol/tone controls are complimented by 4 x pickguard mounted toggle switches to offer pickup on/off, coil split and in/out phase options.

Features & Specs

  • Body Wood - Lightweight Simarouba with raised center block
  • Neck Wood -  Set 1pc Roasted Maple
  • Fretboard Wood - Bound Ebony with rolled edges
  • Inlays - Pearloid/MOTO Oval
  • Side Dots - Black
  • Scale - 28”
  • Nut Width - 1.687"
  • Neck Width @ 12th Fret - 2.080"
  • Neck Carve Shape - Chunky C+
  • Neck Depth @ 1st Fret - .850”
  • Neck Depth @ 12th Fret - .980”
  • Fretboard Radius - 10”
  • Frets - 24 Medium Jumbo
  • Pickups - Neck - Rivolta Custom JM style (7.5K ohm) / Bridge - Rivolta Custom Humbucker (11k ohm)
  • Wiring - Vol, Tone & 4 x Slider Switches - Bridge On/Off (Right), Neck On/Off (Middle Right), Bridge Split Coil (Left Middle) *This switch will also act as a Bridge ON in Split Coil mode when both pickup switches are in the OFF position (all switches Up position), In/Out Phase (Left)
  • Hardware - Nickel
  • Bridge - Adjustable JM style (10mm String Spacing)
  • Tailpiece - Custom Nickel-plated aluminum
    - Optional Trem Upgrade

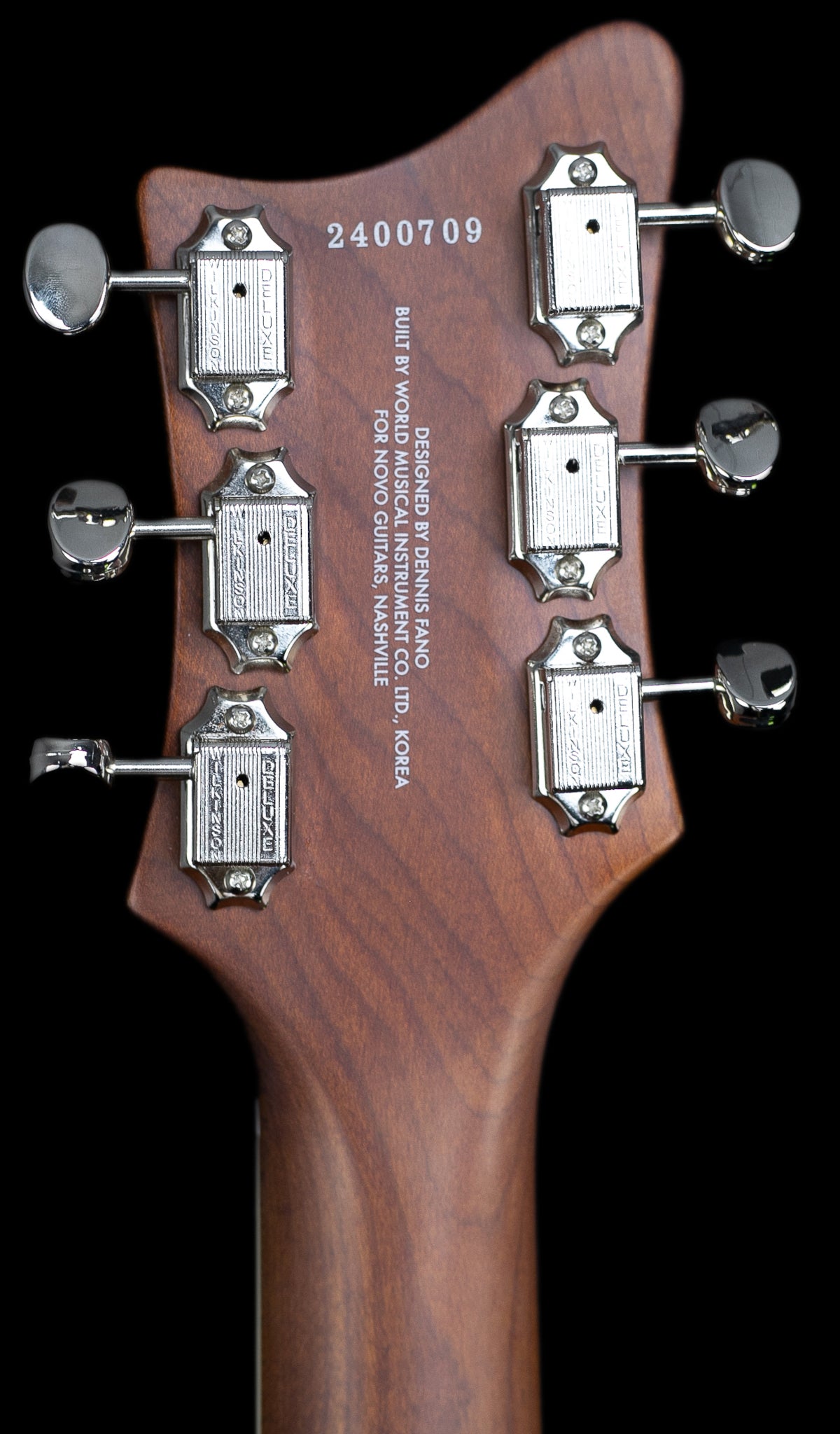

  • Tuners - Wilkinson vintage style with Nickel buttons
  • Knobs - Black reflector with Silver cap
  • Nut Material - Bone
  • Pickguard/Truss cover - Plexi
  • Strings - 14-68 (EXL 157)
  • Body Finish - Gloss
  • Headstock Finish - Gloss
  • Neck Finish - Satin Natural
  • Overall Length - 42”
  • Body Length - 20”
  • Body Width @ Lower Bout - 14 1/2”
  • Body Width @ Upper Bout - 12”
  • Body Depth - 1 25/32”
  • Overall Depth - 2 15/32”
  • Average Weight: 7.5 lbs


Optional Cases:

View full details

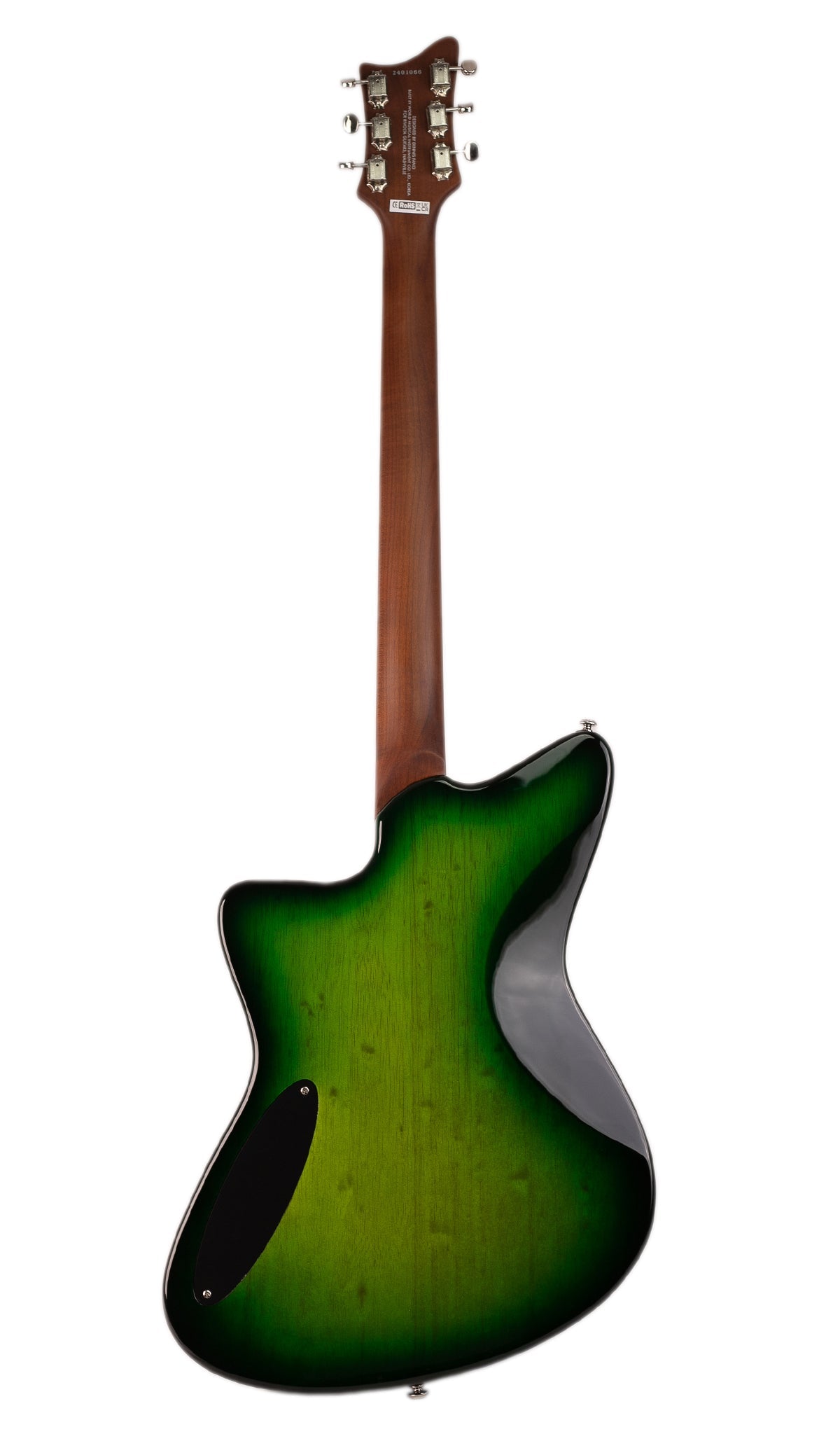

ULTRA-LIGHTWEIGHT SIMAROUBA BODY

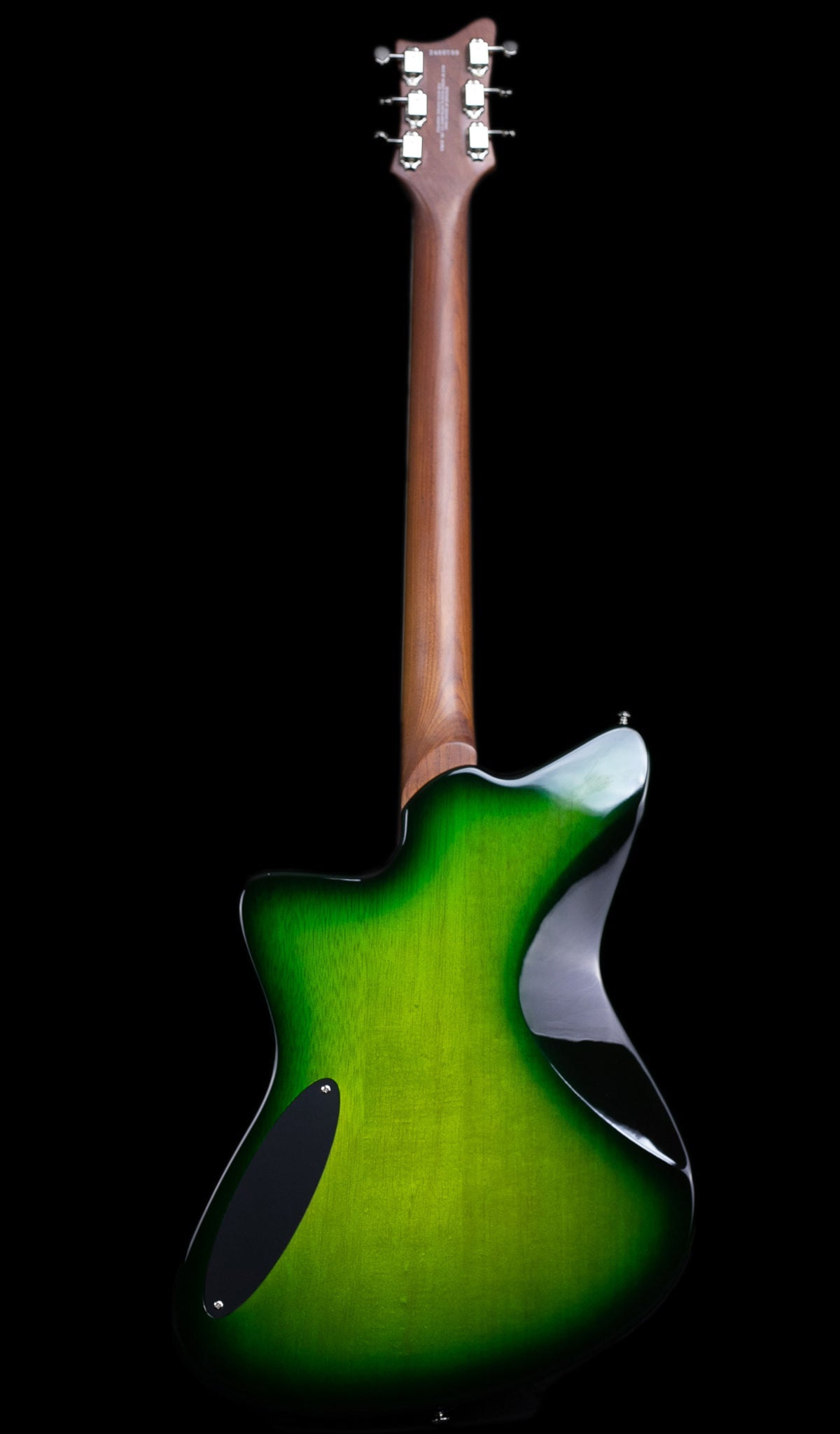

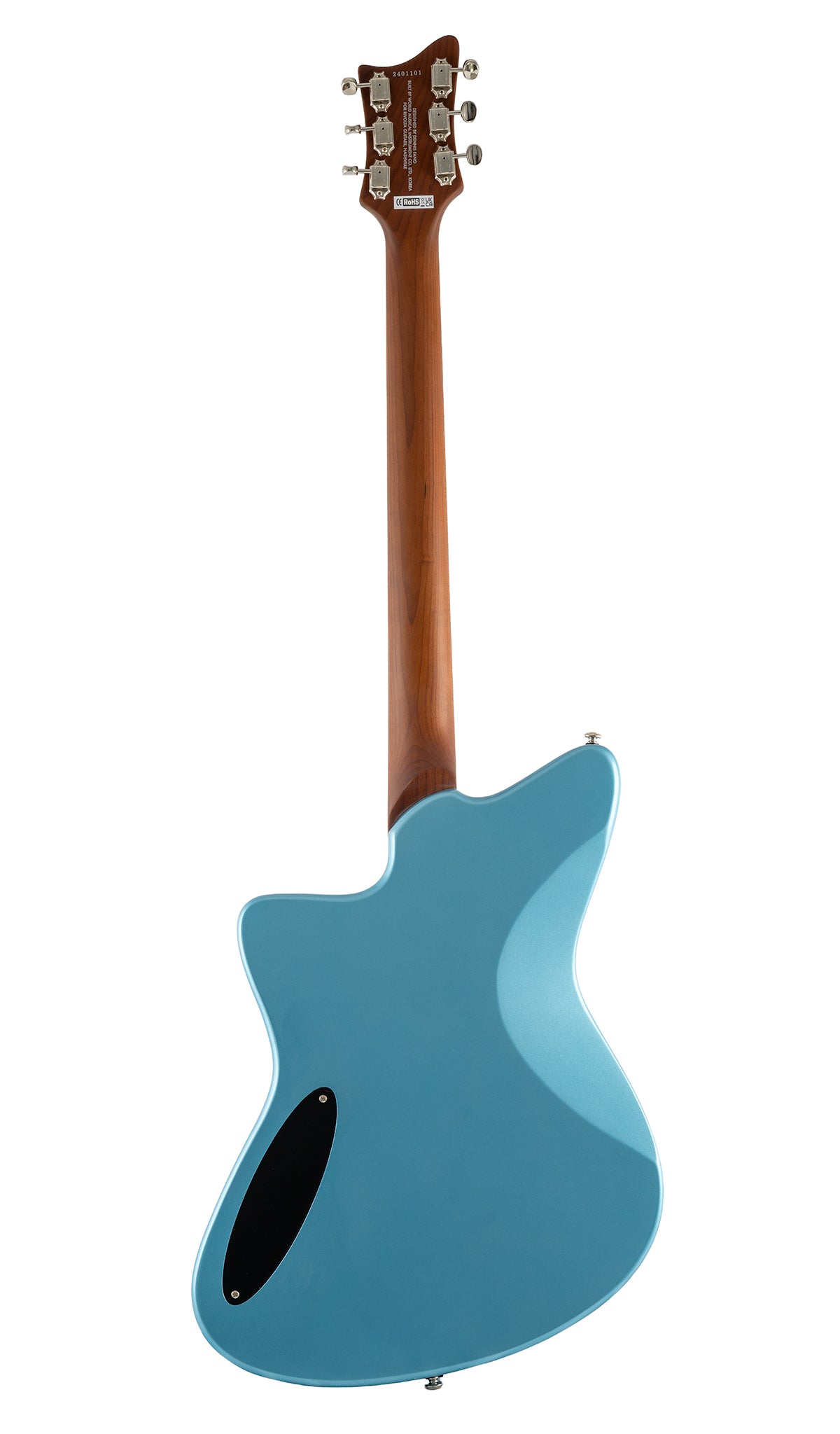

Simarouba is an extremely lightweight and sustainable wood which offers great sustain and beautiful straight grain patterns, similar to that of Korina. We’ve also added a new rear edge radius and tummy carve for enhanced comfort.

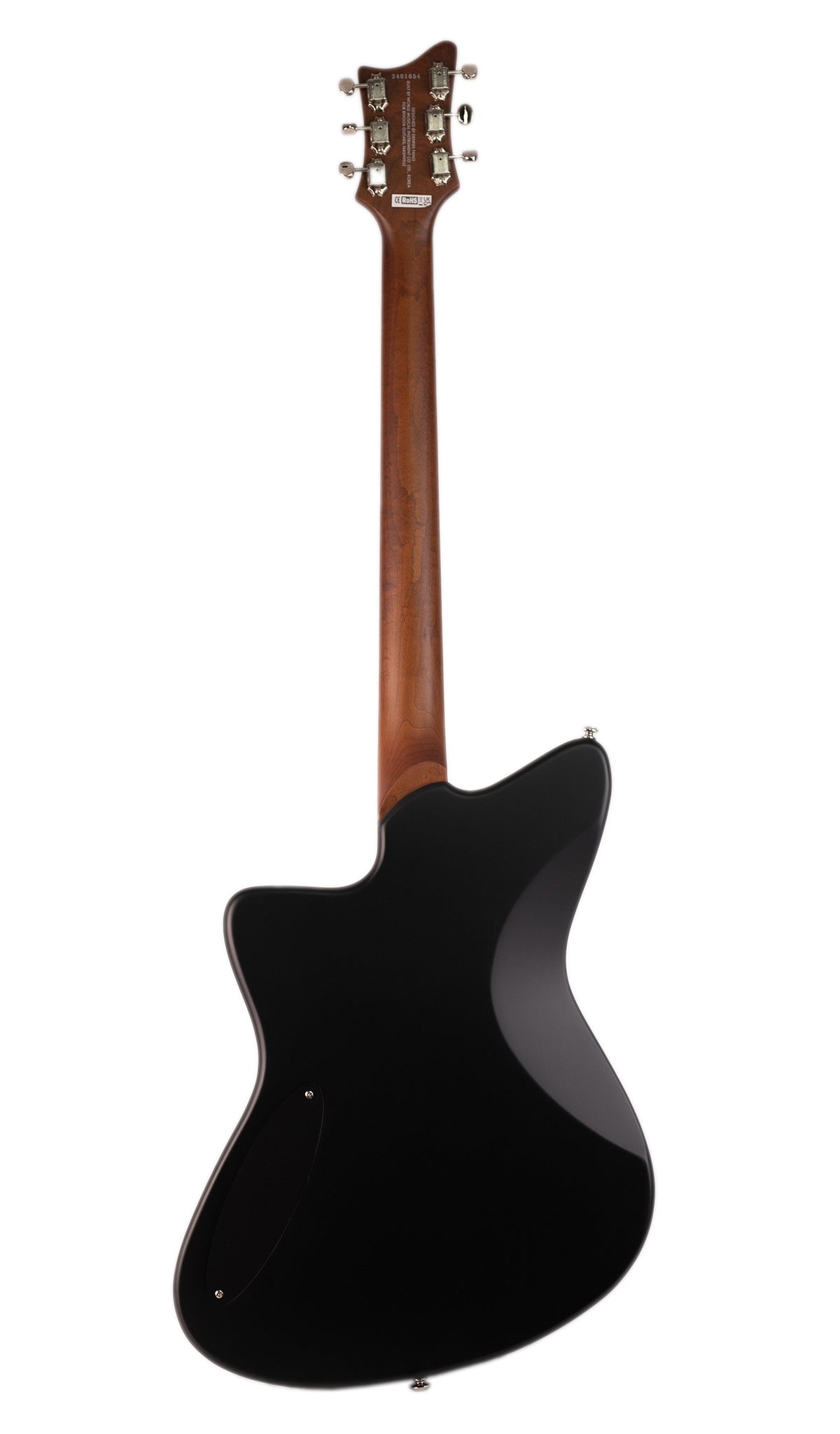

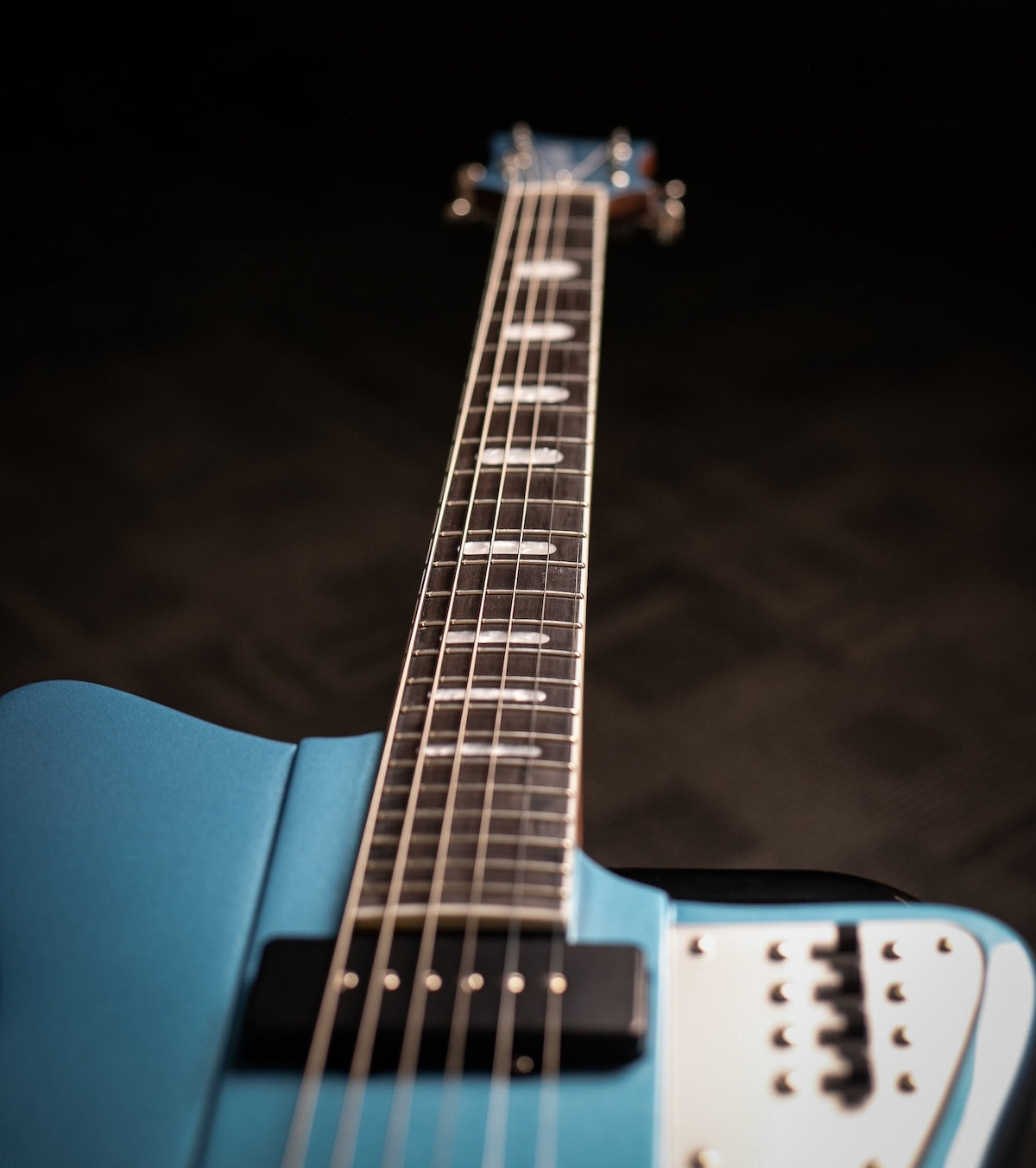

ONE PIECE SATIN ROASTED MAPLE NECK

Our new Roasted Maple necks offer improved structural stability & resistance to temperature and humid changes and the super smooth Satin finish enhances comfort and playability. Our technicians hand roll the edges of every bound Ebony fretboard which will make you instrument feel played-in and comfortable in the hand.

CUSTOM ALUMINUM "VIBRA-TAIL" TAILPIECE

Designed by Novo Guitars, the Rivolta ‘Vibra-Tail’ offers classic Offset string resonance behind the bridge and also covers the pre-routed tremolo cavity allowing for easy conversion to an offset style tremolo (not included).

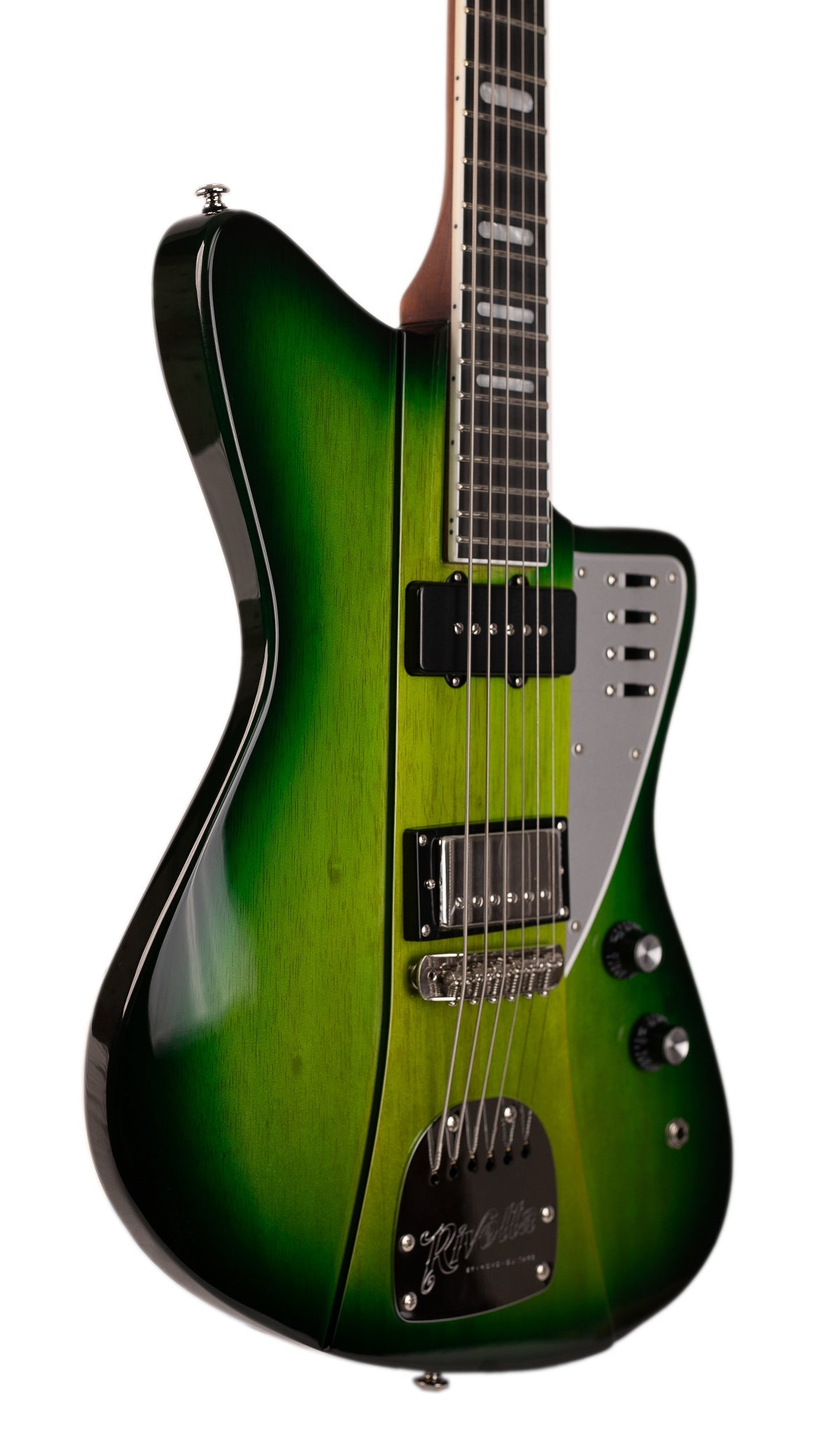

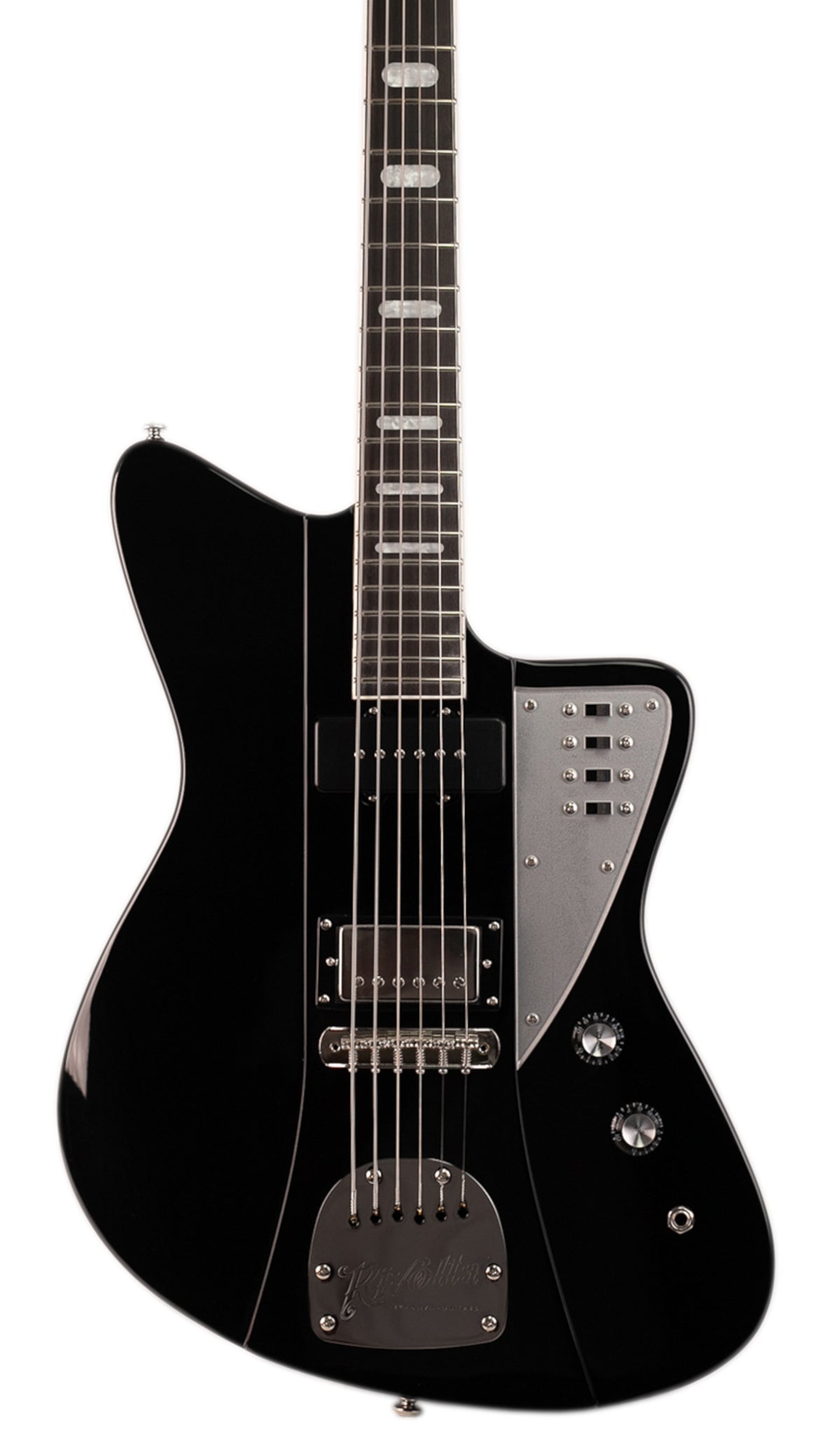

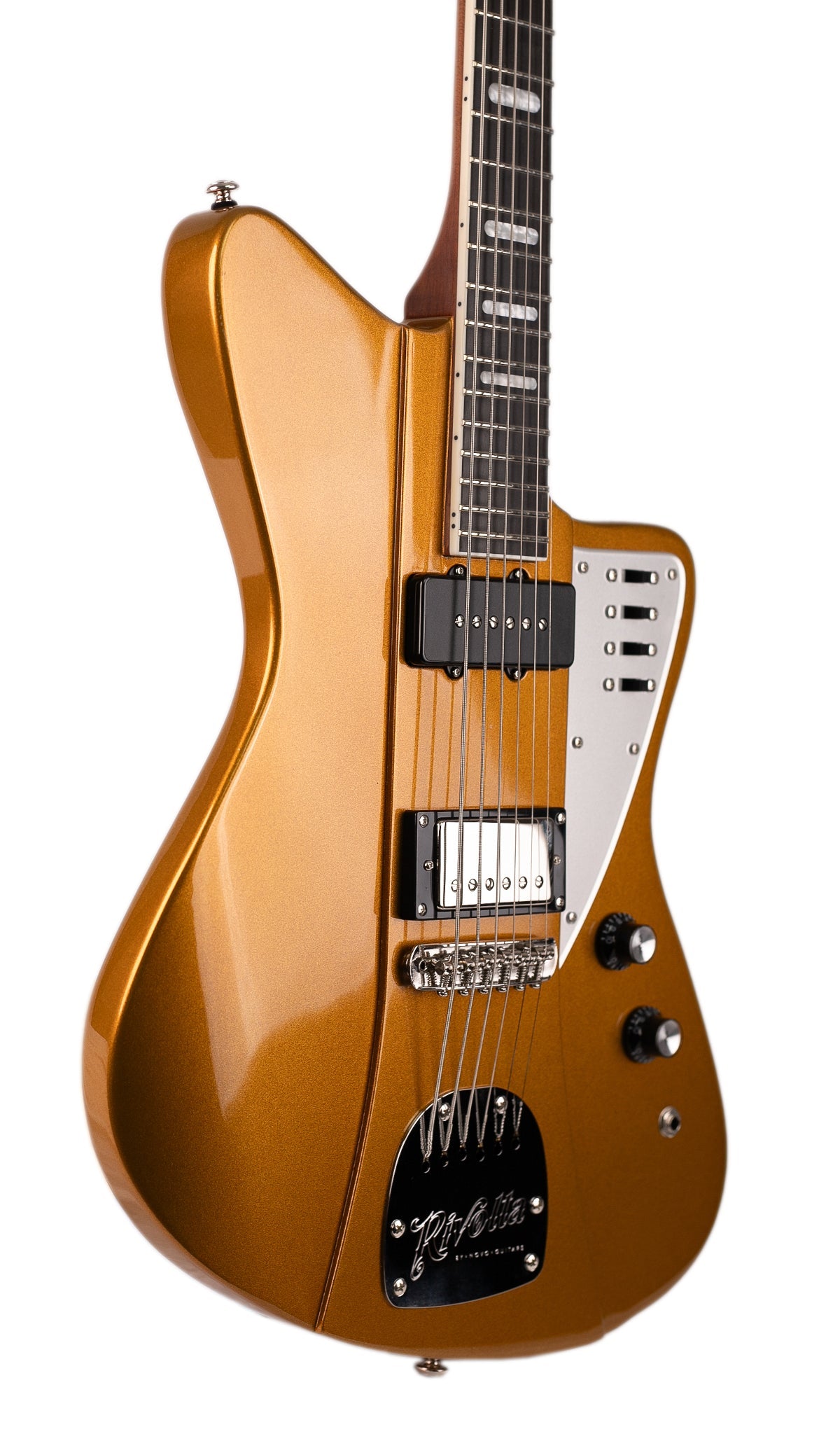

PICKUPS AND ELECTRONICS

Our new Rivolta Custom JM neck pickup and vintage voiced Rivolta Custom Humbuckers are perfectly complimented by 500k pots and 4 x pick guard mounted switches to offer pickup on/off, coil split and in/out phase options.
